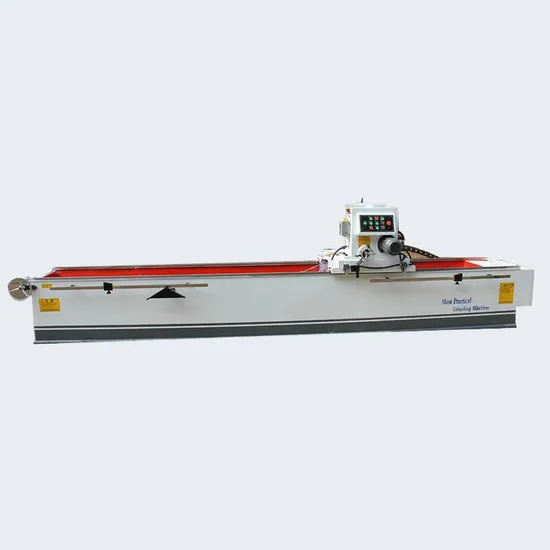

Product Blade Sharpening Machine/4FT Knife Grinder/Knife Grinding Machine

Product Description

Product Parameters

1	Model	M3200
2	maximum knife length	3200 mm
3	working table size	3180*180 mm
4	grinding wheel size	200*100*32 mm
5	grinding precision	less than 0.5 mm
6	electricity standard	380 V, 60 HZ,3 phases
7	grinding head travel speed	17 meters per minute
8	grinding head angle	±10 degree
9	working table angle	±90 degree
10	grinding head transmission	belt drive
11	grinding head motor	4 KW
12	stroke travel motor	0.75 KW
13	lifting motor	0.75 KW
14	water pump motor	0.125 KW
15	total motor power	5.5 KW
16	gross weight	2800 KGS
17	machine size	5350*1300*1300 mm

Detailed Photos
Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine, plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood, other related material and parts for wood processing industry, construction material and machine, etc.The detail business range is as following:1-wood veneer production machine:Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.2-plywood production machine, film faced plywood machine:Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.3- Particle board machine and MDF board machine. 4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.

Packaging & Shipping
FAQ
1.Can the product be customized?
Yes, we support product customization. Customize different products according to your needs.
2.Does the product have after-sales service?
Yes, we offer both online and offline service with a one-year warranty and lifetime after-sales.
3.Why choose us?
Excellent quality and service, as well as cost-effective products.
4.How to ensure the quality of the product?
Welcome to our factory to see the production process.
5.Who is responsible for the installation and commissioning of the machine?
We have more than 15 technicians on site to guide, install and commission the equipment.

---
