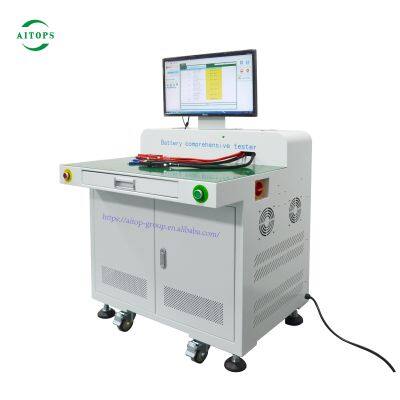

100V 120A 18650 32140 32650 21700 Battery Pack Comprehensive Tester Multi Functional Test Equipment Finished Battery Pack Tester
Product Description
AITOP comprehensive test equipment for finished battery is a fast and accurate test equipment for the performance of finished battery. The main test items include: open circuit voltage, AC internal resistance, discharge test, discharge over-current test,short-circuit protection test, charging test and charging protection test. The system uses 32-bit ARM processor and 16 bit AD converter for voltage and current. Compared with the similar equipment, the system has the advantages of fast test speed, high test precision and support for multiple devices to operate at the same time. It is widely used in automobile electronics,aerospace, ship, solar energy storage, electric bicycle, electric motorcycle, backup power battery, communication power supply,etc.
Product Features
1. The continuous output power of the equipment is 2kW.
2. The continuous load power of the equipment is 12KW.
3. The maximum test voltage is 100V. (can be customized according to requirements)
4. Maximum charging current (20a), discharge current (100a) and discharge over-current (200a). (can be customized according to requirements)
5. Programmable control of test items.
6. Friendly man-machine interface of upper computer.
7. Support one upper computer software to control 8 devices.
8. The device supports serial port and network communication with upper computer.
9. Test records can be saved to database (SQL) or file (Excel).
10. Support test project export and import function.
11. The equipment supports charging and discharging of the same port and split port batteries.
12. The device supports the function of charging and activating battery.
13. Battery unit consistency evaluation test.
14. Battery pack internal resistance test.
15. Battery pack load test.
16. Battery pack high current protection test.
17. Battery authenticity short circuit protection test.
18. Battery continuous charging test.
19. Battery pack high current charging protection test.
20. The input voltage of the equipment is AC220V / 50Hz. (input line must be grounded)
21. The input shell of the equipment is well grounded.
Product Advantages
1. Open circuit voltage: test the voltage at both positive and negative ends of open circuit battery.
2. AC internal resistance: test the resistance at both ends of the battery discharge circuit.
3. Discharge test: test the continuous load capacity of the battery, let the battery discharge continuously for a certain time,and check the voltage drop.
4. Discharge over-current test: test the battery high current discharge protection function and trigger the battery protection board discharge over-current protection function.
5. Short circuit protection: test battery positive and negative pole short circuit battery cut-off protection time (microsecond level).
6. Charging test: test the battery continuous charging function, and test whether the battery charging function is good.
7. Charging over-current test: test the battery high current charging protection function, and the battery protection board charging current protection function is triggered by the battery high current charging.
Product Specification
Input power
| AC220V±10%/50Hz
|
No load voltage
| measuring range
| 0-100V
|
Current
| Charging range
| 0.1-20A
|
Discharging range
| 0.1-60A
|
Charging over current
| 4-20A
|
Discharge over current
| 4-200A
|
resolution
| ±2mA
|
accuracy
| ±(0.2% of reading +0.2% of range)
|
Internal resistance
| resolution
| ±0.1mΩ
|
R1/R2
| resolution
| ±1kΩ
|
Short circuit protection
| Short circuit protection time
| 0-19999us
|
Resolution
| ±0.1uS
|
Voltage and Current Detection Sampling
| Four-wire sampling
|
Data Base
| Using SQL database to manage test data
|
Upper computer communication mode
| Based on TCP/IP Protocol/Serial Port
|
Data Output Mode
| EXCEL/TXT/Chart
|
Communication Interface
| Mesh port/Network port
|
Cabinet Size
| 850*700*920mm
|
E-Motorcycle Battery Charging&Discharging Tester with Date Records Multi-Function Battery Pack Tester 100V 20A Battery Pack Charging Discharging Machine
Product Description
Function Features:
1.with constant current and constant voltage charging function .
2.with constant current discharging function .
3.By charging and discharging the battery ,the charge protection and discharge protection of the battery can bedetected.
4. Charging and discharging the battery,record the charge capacity and discharge capacity of battery.
Product Technical Parameter
Input power:AC 220v+/-10%/50Hz
Voltage:10-100V
Current: charge range:0-10000mA
discharge range:0-20000mA
Charge:Min10mA
Discharge power :below 1400W
Time : Patrol time :under 5s
Timer range :0-999hours /step
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/
18098989643/+8618820281861
Email:sales(@)
|
|
|
|
|
|
|
|
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/
18098989643/+8618820281861
Email:sales(@)
|
|
|
|
|
|
|
|
|
|
Techinical Parameters:
WE AITOP specialized manufacturing machine for Lithium battery assembly line (Auto pvc peeling/ paste paper /sorting/test/Welding/injection molding/Labeling/bagging Machine ) more than 10 years.
1, Our machines can do 18650/26650/32650/21700 etc ,Cylindrical batteries testing, sorting and spot welding in great speed.
2, You can design your own voltage and internal resistance.
3, We have a complete production line for power battery packs.
4, Our machines are widely used in battery factories for mobile phone, power bank, laptop , ebikes and electric vehicle .
5, We have an oversea sales office in New Delhi, India and now is quite popular.India , most battery factory machine support by us,Like intex,kites air,erd,ambrane,bmt,iccon ETC.
Any chance you like our products, please feel free to contact us.
We can provide you a perfect solution for power battery packs production!Such as attached Solutions.
we have strict quality control system and high efficiency work team and received a high evaluation and recognition of our customers.
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/
18098989643/+8618820281861
Email:sales(@)
Packing and shipping
*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days after we received your battery pack samples.
*Customized Machine: 15-30 days
Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.
After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
Looking forward to establish good business relationship with you in the new future,any question,please
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/
18098989643/+8618820281861
Email:sales(@)
