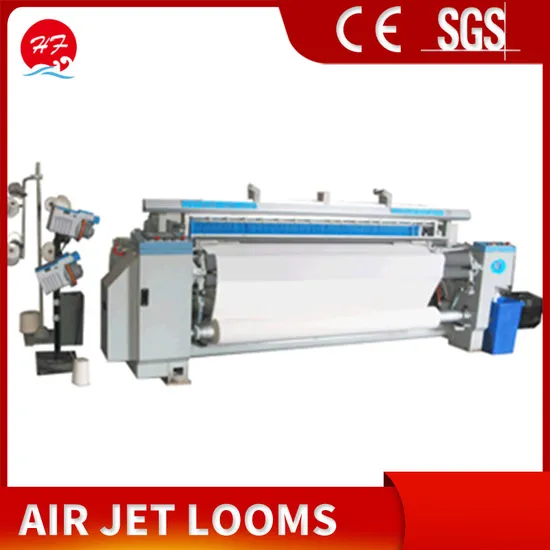

Good Condition Hf-877 Air Jet Loom Machine

US$5,500.00-6,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
HF-877
Computerized
Computerized
Precision
High Precision
Certification
ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
Applicable Industries
Manufacturing Plant
Application
Weaving
After-Sales Service Provided
Video Technical Support, Online Support
Automation
with PLC Control, and Automatic Monitoring System
Transport Package
Export Packing
Specification
customized
Trademark
Haifu Machinery
Origin
Qingdao, China
HS Code
84463050
Production Capacity
200 Set/Sets Per Month

Product Description

HF-190CM Air jet loom is a new type dobby air jet loom. It also has special designs on left-off system.
1: New type of weft insertion: Economizing air resource
2: New type of beating: Running as high speed and low oscillation
3: It-intelligence board: Easy to understand with color picture two-way communication
Item Specification
Reed space nominal 190 210 230 280
Useful reeding width Same as nominals width maximum reduction 60cm
Working range Short yarn: 60s/1---5.8s/1
Welf section 2-colour mixing, 2 colour at-will, 4 colour

Drive
Pss can programme to start, push-button operation with both hands
Motor power 2.7KW, 3. OKW, 3.7KW
WELFINSERTION Main and sub-nozzles combined system
Shedding Negative(positive) cam shedding: shaft number up to 10
Let-off Electronic let-off with kickback function
Flange dia 800cm


Take-up
ETM electronical take-up
MTU mechanical take-up
Max. take-up Dia 400cm
Pick density 6.6- 80.5 picks/cm(16.7- 204.4 picks/inch)
Length count i-board display, take the function of fixe measure stop
temple Floor-mounted

Beating
Crank type beating, multiple sley sword beating
4 links(reed space up to 230cm)
6 links(down to 230cm)
intermediate rocking supporter
Measuring /storing FDP Free Drum Pooling
Filling supply stand Floor-mounted for 4 packages(2 colours), Floor-mounted for 8 packages(4 colours),
Selvedge Planetary gear motion
Waste filling removal Catch cord type(gear type)
Cutter Mechanical cutter
lubrication Oil bath system for main drive parts, centralized lubrication(manual grease)

Auto-stop motion
Catch yarn Reflective weft feeler(single feeler)
others Stop motion for selvage and catch cord yarn
Stop cause indication Message on I-bord, 4 colour lamp for indicating cause

Qingdao Haifu Machinery Manufacture Co., Ltd. is specializing in manufacturing and supplying water-jet loom.In the past 15 years, Haifu machinery has supplied world wide approximately 89000 sets of water jet loom machine, and it was among the first facotry in China making water jet loom, the company now has two facotries, one in Qingdao, the other one in Siyang, jiangsu province, haifu machinery is making sure all the machine given to the customer are at the same quaity, same best quality, we are not only focus on the price, but we are also focus on our brand name, we believe that with our quality always insured, customer will sees it and come back to us with more customers.Our machine now is running in Uzibekistan, Mexico, India, Turkmenistan, Pakistan. Every one of our customer was atractted by the way we make machines and decided to buy, and of course, satisfied with our machine and try to buy more.
