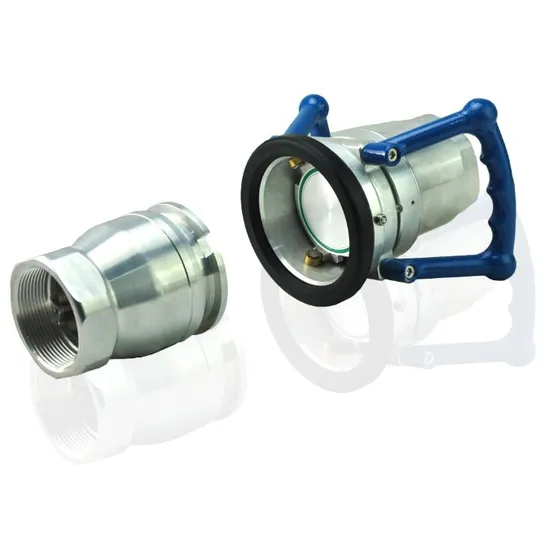

FLOWCAN DRY BREAK COUPLERS DRY DISCONNECT COUPLINGS

Product Description

DESCRIPTIONDRY DISCONNECT COUPLINGS
SPECIFICATION

Dry Disconnect Couplings
Coupling Material	Stainless steel	Aluminium	Brass
Working Pressure	25 bars (363 psi)	10 bars (145 psi)	16 bars (232 psi)
Test Pressure	37.5 bars (544 psi)	15 bars (218 psi)	24 bars (348 psi)
O-rings Seal	FPM (-35°C / +140°C)	NBR (-30°C / +100°C)	/
Flat Seal	PTFE (-25°C/ +250°C)
End Connections	BSPP ,NPT ,ANSI 150 Lbs Flange (Other Thread and Flangetypes on request.)
Certificates	ATEX , PED , 3.1 Material certificate

APPLICATIONHow our Dry Disconnect Couplings works?
1.Turning the Hose Unit by 15° clockwise locks the units together.
2.The valves are still closed
3.Turning the Hose Unit by 90° opens the inside valves.
4.To close the valves and unlock the Units, reverse the process.
FEATURE
1.Safety First!
Our Dry Disconnect couplings are designed to protect the operators and the environment during the loading and unloading fluid process. The bidirectional sealing design ensures a safe and simple disassembly process.
2.Solutions.
We can supply a large range of material and sizes.
3.Multi-Brands compatibility.
Our Dry Disconnect Couplings are designed according NATO STANAG 3756 this allows us to be compatible with most brands.
ADVANTAGE
1. Avoid the loss of fluids during locking and unlocking connection process.
2. Reduce the possibility of Human error in fluid transfer operation (mixing products)
3. Ease of handling
4. Protect the Human health
5. Protect the Environment
PRODUCT SKETCH
CERTIFICATESATEX PED SIZE

DDC-HOSE UNIT
Model	Size(mm)	Thread	Code	Thread	Code	Material
TH56	1''	BSPP ISO 228-1"	L1601087	NPT	L1601051	SS 1.4408
TH70	2''	BSPP ISO 228-2''	L1601026	NPT	L1601099	SS 1.4408
TH105	2-1/2''	BSPP ISO 228-2-1/2''	L1601005	NPT	L1601104	SS 1.4408
TH119	3''	BSPP ISO 228-3''	L1601057	NPT	L1601114	SS 1.4408
TH164	4''	BSPP ISO 228-4''	L1601018	NPT	L1601115	SS 1.4408
TH238	6''	BSPP ISO 228-6''	L1601182	NPT	L1601183	SS 1.4408
TH272	8''	BSPP ISO 228-8''	L1601218	NPT	L1601219	SS 1.4408
TH56	1''	BSPP ISO 228-1"	L1601168	NPT	L1601166	BR
TH70	2''	BSPP ISO 228-2''	L1601068	NPT	L1601154	BR
TH105	2-1/2''	BSPP ISO 228-2-1/2''	L1601069	NPT	L1601170	BR
TH119	3''	BSPP ISO 228-3''	L1601129	NPT	L1601070	BR
TH164	4''	BSPP ISO 228-4''	L1601137	NPT	L1601071	BR
TH238	6''	BSPP ISO 228-6''	L1601206	NPT	L1601207	BR
TH272	8''	BSPP ISO 228-8''	L1601214	NPT	L1601215	BR
TH56	1''	BSPP ISO 228-1"	L1601097	NPT	L1601046	AL
TH70	2''	BSPP ISO 228-2''	L1601047	NPT	L1601106	AL
TH105	2-1/2''	BSPP ISO 228-2-1/2''	L1601145	NPT	L1601146	AL
TH119	3''	BSPP ISO 228-3''	L1601113	NPT	L1601116	AL
TH164	4''	BSPP ISO 228-4''	L1601050	NPT	L1601081	AL
TH238	6''	BSPP ISO 228-6''	L1601202	NPT	L1601203	AL
TH272	8''	BSPP ISO 228-8''	L1601210	NPT	L1601211	AL

DDC-TANK UNIT
Model	Size(mm)	Thread	Code	Thread	Code	Material
TU56	1''	BSPP ISO 228-1"	L1601093	NPT	L1601171	SS 1.4408
TU70	2''	BSPP ISO 228-2''	L1601032	NPT	L1601152	SS 1.4408
TU105	2-1/2''	BSPP ISO 228-2-1/2''	L1601044	NPT	L1601103	SS 1.4408
TU119	3''	BSPP ISO 228-3''	L1601034	NPT	L1601111	SS 1.4408
TU164	4''	BSPP ISO 228-4''	L1601024	NPT	L1601112	SS 1.4408
TU238	6''	BSPP ISO 228-6''	L1601178	NPT	L1601179	SS 1.4408
TU272	8''	BSPP ISO 228-8''	L1601216	NPT	L1601217	SS 1.4408
TU56	1''	BSPP ISO 228-1"	L1601167	NPT	L1601165	BR
TU70	2''	BSPP ISO 228-2''	L1601064	NPT	L1601159	BR
TU105	2-1/2''	BSPP ISO 228-2-1/2''	L1601065	NPT	L1601169	BR
TU119	3''	BSPP ISO 228-3''	L1601134	NPT	L1601066	BR
TU164	4''	BSPP ISO 228-4''	L1601142	NPT	L1601067	BR
TU238	6''	BSPP ISO 228-6''	L1601204	NPT	L1601205	BR
TU272	8''	BSPP ISO 228-8''	L1601212	NPT	L1601213	BR
TU56	1''	BSPP ISO 228-1"	L1601098	NPT	L1601039	AL
TU70	2''	BSPP ISO 228-2''	L1601001	NPT	L1601002	AL
TU105	2-1/2''	BSPP ISO 228-2-1/2''	L1601040	NPT	L1601102	AL
TU119	3''	BSPP ISO 228-3''	L1601041	NPT	L1601117	AL
TU164	4''	BSPP ISO 228-4''	L1601042	NPT	L1601083	AL
TU238	6''	BSPP ISO 228-6''	L1601200	NPT	L1601201	AL
TU272	8''	BSPP ISO 228-8''	L1601208	NPT	L1601209	AL

Quality Assurance and Service
1. Have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is a must.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service Welcome to your inquiry!

---
