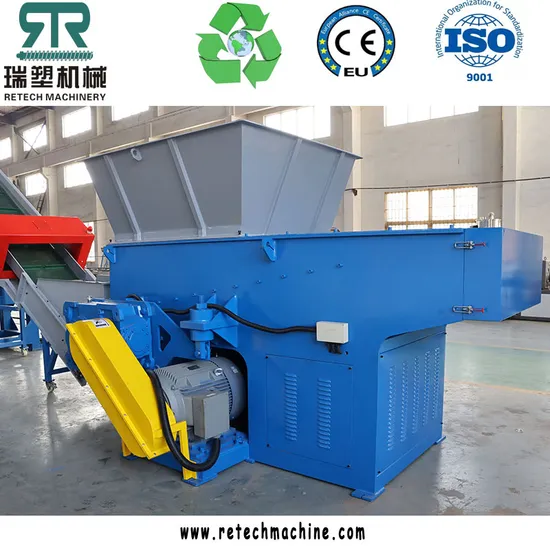

Single Shaft Shredder for Plastic Pipe Mold Waste Material

Product Description

Product Description
Two axis single shaft shredder for RETECH Plastic recycling PP PE PET film bag fabric fiber raffia materials
Product Description
The shredder is a widely used machine for tearing big material to small pieces, which make them easy for next step to transportation or recycling. It consists of single shaft shredder, double shaft shredder, four shaft shredder, horizontal big pipe shredder, smaller pipe crusher….
Plastic Shredder machine is an ideal machine for plastic, paper, wood, fiber, rubber, organic waste a wide variety of non metallic materials. The size of the machine required for each project depends on the initial size of the material, capacity and the final particle size desired.
The shredder series range is controlled by microcomputer, featuring start, stop, reverse functions. It is fitted with an automatic overload return mechanism to prevent damage to rotor and other parts. It runs at high torque, low speed, with low noise output, suitable for recycling a wide range of materials.
Detailed Photos
Product Parameters
1. Single Shaft Shredder
Application:
The single shaft shredder is mainly used for big block objects, such as die head material, thick wall pipes, and also can be used for film roller, paper and fibers, etc….
Main characters:
1. The blades and blades rack of single shaft shredder can be demounted on the rotating shaft. It is easy to clear, change and maintenance.
2. The rotating blades of single shaft shredder are fixed on the shaft by V shape. It is good for shredding the material evenly which can make the energy consumption is low and noise is very small.
3. Every rotating blade of single shaft shredder has 4 cutting edges, after one cutting edge is worn out, it can be changed to other ones. And also with same design to the fixed blade, which has two cutting edges, also when one cutting edge is worn out, it can be change to the other one.
4. The shaft of single shaft shredder is driven by motor through the gear box, it runs stable, low noise, high torque.
5. The material is pushed by hydraulic pusher of single shaft shredder automatically. It works strong and stable.
6. The electric system of single shaft shredder is controlled by PLC, which make the shaft can rotate in positive direction, reversal direction and stop, then to protect the machines running safely.

Model	Main power	Pushing power	Qty rotating blades	Qty fixed blades	Shaft rotating diameter	Capacity (kg)	Size (mm)	Weight (kg)
TSS600	22kw	1.5kw	28	2	φ252mm	200~400	1800x1200x1800	2000
TSS800	37kw	2.2kw	38	2	φ400mm	500~800	2700x1700x2000	3200
TSS1000	45kw	2.2kw	48	3	φ400mm	700~1000	2800x2000x2300	4300
TSS1200	55kw	3.7kw	78	3	φ430mm	1000~1500	2950x2200x2500	5500
TSS1500	90kw	3.7kw	102	4	φ480mm	1300~1800	3100x2550x2700	7800
TSS2000	55kw*2	5.5kw	177	4	φ480mm	1800~2500	3300x3050x2800	9500

2. Double Shaft Shredder
Application:
The double shaft shredder is mainly used for hard material, such as barrel, basket, panel material, wood, car tires and even big bale film etc…..
Main characters:
1. The shredding cabinet of double shaft shredder is made of special thickness steel panel with precision machining. It is fixed by big angle hexagonal bolts and with strong inlet hopper. All these is to ensure the big and heavy material can be put directly into the shredding cabinets
2. The rotating blades of double shaft shredder are with special designed to the thickness, shape and arranging series which ensure it is strong cutting ability, sharpening cutting edge and then make it working high efficiently.
3. Low speed running, low noise and less powder flying of double shaft shredder.
4. The blades of double shaft shredder are made of special alloy steel, strong and long time working.
5. The electric system of double shaft shredder is controlled by PLC, which make the shaft can rotate in positive direction, reversal direction and stop, then to protect the machines running safely.

Model	Motor power(KW)	Qty of blades	Size of shredding chamber	Capacity (kg/h)
TDS600	15	12	600*550 mm	300~800
TDS800	37	16	800*600 mm	500~1500
TDS1000	30×2	20	1000*700 mm	1000~2000
TDS1200	37×2	24	1200*800 mm	1500~2500
TDS1500	45kw×2	22	1600*900 mm	2000~3000
