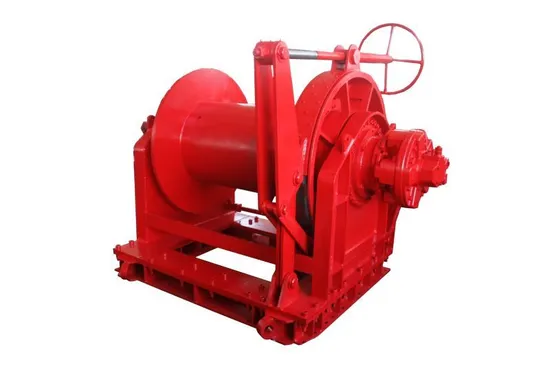

Ini Hydraulic Truck Crane Compact Winch

Product Description

INI hydraulic truck crane compact winch A complete set of hydraulic equipment that specially designed for truck cranes were launched in 2012. The package includes a hydaulic compact winch, swing drive, pump, directional valve and hydraulic system.

Tailored solutions for customers are available in regard of different technical requirements, such as line pull, speed, drum capacity and optional grooved drum and cable roller, etc.

They're compact in design and cost saving, but deliver a good quality and high performance.

They have been used by famous players at home and abroad, including Palfinger, Paccar, Sany and Xugong Group.

More information is available upon request.

Main Features
1. Compact and elegant design, easy to install
2. High starting& working efficiency
3. Reliable operation with little noise
4. Stable operation in hot, cold, wet, damp and other extreme working environments
5. Low maintenance relieves your anxiety
6. A range of accessories such as rope guides and pressure rollers are available on request.


Application
They're widely used in construction equipments, mining industry, deck machinery, truck crane and other light, medium and heavy duty applications.

It's a two speed winch. The main specification is as follows. Outline dimension Features 1 Heavy duty high torque hydraulic motor. 2 Extremely watertight with good quality internal seal. 3 Free spooling clutch-Rotation (normal manual clutch). 4 Compact structure, easy for mounting by two angle bar. 5 Fast line speed provide high efficiency for recovery 6 With cable tensioner 7 Integrated mechanical brake. 8 Winch can be mounted on wrecker, recovery truck, or other vehicles Company Introduction
240,000 m3, 700 employees, ISO9001:2008 & ISO14001:2004 certified.

Established in 1996, we're one of leading manufacturers in China who are specialized in designing and manufacturing hydraulic winches, hydraulic motors, hydraulic slewing drives, planetary gearboxes, travel motors and wheel motors, hydraulic capstans, hydraulic power units, and hydraulic pumps.

With strong research and development capability, we have achieved 14 invention patents and 30 practical innovation patents.
Meanwhile, we have more than 250 sets of advanced production and inspection equipment to ensure the quality of
our products.

Our products have been widely used in Offshore Application, Agriculture Industry, Fishing Equipment, Construction Machinery,
Petroleum Industry, Coal Mining, Geological Prospection, Marine Application, Metallurgical Engineering, Light Industry,
as well as Environmental Protection and other industries.

As a trustworthy manufacturer and supplier, we have a dominating market share in China, and we also enjoy an increasing
market share worldwide. Our products have been exported to:

-Europe: UK, Austria, Netherlands, Germany, Sweden
-North America: USA, Canada
-South America: Brazil, Argentina
-Russia, Australia,Turkey, Southeast Asia, Middle East, India, Korea and other countries in the world.
Performance

Rated line pull (1st layer)	KN / kgs / lbs	39/ 4000 / 9000
Motor displacement	ml/rev	80
Oil flow	L/min	15-60
Oil pressure	MPa	14
Gear ratio		23:1
Wire rope (diameter x length)		Φ11mm x 25metre
Drum dimensions (diameter x length)	mm	Φ88 xΦ192 x 200
Mounting dimension and bolts		300mm x 280mm 8-M12
Overall dimension	mm	516(524) x 316(376) x 237
Net weight (with wire rope and hook)	kg	48

Line pull, oil pressure and oil flow, line speed

Line pull (KN)	Oil pressure (Mpa)	Oil flow (L/min)	Speed (m/min)
0	3.5	15	2.5
27	8.5	25	4.0
36	11.0	40	6.5
39	14.0	50	8.0
49	15.0	60	9.5

Layer of calbe, line pull per layer, speed and wire rope capacity

Layer of cable	Line pull (KN)	Speed (m/min)	Wire rope capacity
1	39	9.5	5
2	34	11.8	12
3	28	13.9	19
4	25	16.0	25

Certification

---
