Water Cooling Machine Vulcanizing Equipment 4200mm Press Machine

Product Description

Machine Apperance & Specifications

Model(Stainless Steel)	PB-600	PB-900	PB-1100	PB-1300	PB-1600	PB-2100
Effective Length	500mm	800mm	1000mm	1200mm	1500mm	2000mm
Effective Width	150mm/200mm
Total Weight	45kg	65kg	87kg	87kg	125kg	196kg
Max.Pressure	2 Bar
Max.Temperature	200 ºC
Power	2016W	3024W	3696W	3300W	5760W	7560W

Model(Aluminum Alloy)	PC-2100	PC-2600	PC-3200	PC-4200
Effective Length	2000mm	2500mm	3000mm	4000mm
Effective Width	150mm/200mm
Total Weight	196 kg	250kg	340kg	430kg
Max.Pressure	2 Bar
Max.Temperature	200 ºC
Power	7560W	9360W	11520W	15120W

Machine YouTube Linkness: https://cnlong015.en.made-in-china.com
Application:

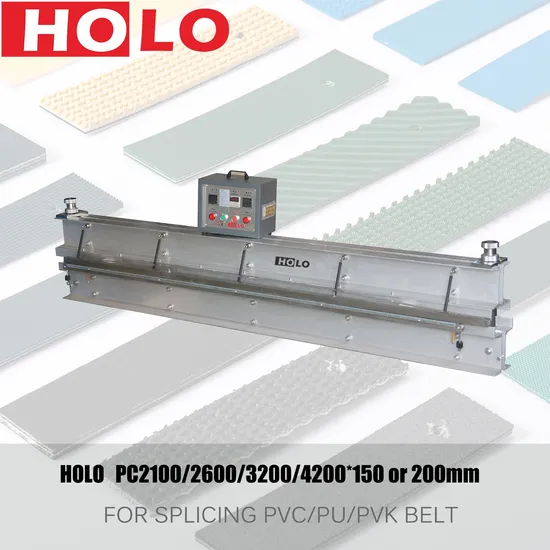

PB Stainless steel water cooled hot press splicing machine/PC Aluminum alloy water cooled hot press splicing machine
used for PVC belt, Polyurethane belt(PU belt) and Polyester Monofilament synthetic belting.

Features:
1.Temperture Controller for upper and lower heating platen from Omron(Japan), Time Controller from CHNT.
2.Laser silica gel hot platen, better than manual type.
3.Temperature error (Up and bottom hot platen) is less than 3 ºC, heating more uniformer.
Detailed Images:
Packing&Delivery:
We will use film to wrap the machine. then put into wooden box.
The normal package is wooden box.(Fumigation treatment).
Our Service:
Pre-sales Service
* Inquiry and consulting support.
* Sample testing support.
* Welcome view our Factory.
After-sales
*Teaching video to show how to work.
*Machine introduction word to show how to work.
Warranty
*Machines are new (or unused) and the guarantee period will be given 12 months from shipment date.
During this period, the seller will provide free maintenance and free spare parts that caused by the machine's quality.
Parts damaged because of mishandling and consumable parts are not covered by any warranty.
*All our machines have CE certificates and passed ISO9001-2008
HoloBelt Machines Collocation Solutions
Total solution is how we define Holobelt company. From design, engineering, manufacturing and training,
Holo provides a total workshop solution to our customers helping to give them a competitive advantage in the marketplace.
Workshop Show:
*Conveyor Belt Cutting Slitting Machine
*Conveyor Belt Ply Separator Splitting Machine
*Conveyor Belt Punching Finger Machine
*Conveyor Belt cooled hot press splicing Machine
*Conveyor Belt Welding Machine
*Conveyor Belt Vulcansied Machine
*PU PVC Rubber Conveyor Belt for sell
Welcome to visit our website to view details: cnlong015.en.made-in-china.com

---
