Computing Ai Box Multifunction Edge Ai 8GB 40tops Computing Device

Product Description

FC2106 is developed and designed based on NVIDIA Jetson Orin Nano core board. It is pre-installed with Ubuntu20.04 operating system, supports 4G/5G functions, is made of ultra-strong and light aluminum alloy material, has no fan structure to conduct passive heat dissipation, and has a variety of IO interfaces. The bottom bracket that is convenient for site installation is reserved, which can be applied to autonomous machines such as robots, unmanned delivery vehicles, low-altitude defense, intelligent inspection, and smart buildings. It is an ideal carrier for deploying AI computing power at the edge for deep learning.

4G/5G

POE network port

Low power consumption

Standard serial port

Product Parameters

Technical parameters
System	AI platform	Jetson Orin Nano
	AI computing power	Super mode: 67TOPS
	GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
	CPU	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
	Video coding	1080p30 supported by 1-2 CPU cores
	Video decoding	1×4K60 (H.265) 2×4K30 (H.265) 5×1080p60 (H.265) 11×1080p30 (H.265)
	Memory	8GB 128-bit LPDDR5 68 GB/s
	Storage/expansion	(Supports external NVMe)

Hardware interface
Wired network	Interface	5× RJ45 RJ45 gigabit network port, Lan1 independent IP, Lan2-Lan4 shared IP and supporting POE (at standard)
Wireless network	WIFI	2.4GHz/5GHz dual-band WiFi (optional)
	5G/4G	4G Full Netcom /5G Full Netcom (optional)
	GNSS	Support multi-mode (BD, GPS), meter/centimeter/RTK/inertial navigation (optional) (RTK antenna is required with RTK function)
	Other	1 × SIM card
Multi-media	Display	1×HDMI
	Audio	/
I/O	USB	4×USB3.0 Type-A, 1×USB2.0 Micro OTG
	Serial port	1×RS232, 1×RS232/RS485
	CAN	1×CAN, 1×SPI-CAN (optional)
	Multi-functional interface	4× GPIO (3.3V@1mA) 1×I2C (3.3V)
Interface	M.2 KEY E	/
	M.2 KEY M	1×2280 PCIE SSD
Other	RTC	1×RTC
	Synchronous system	/
	GMSL camera interface	/
Other	Power input	12-24V, support backup power supply (optional)
	Power interface	MX3.0 terminal
	Keys/indicators	Two buttons and two indicator lights for Recover/Rest
Physical parameters	Specifications/dimensions	165mm × 163.3mm × 53mm
Environment	Operating temperature	-20ºC to 60ºC
	Operating humidity	5% to 95%, no condensation
	Heat dissipation mode	Passive heat dissipation

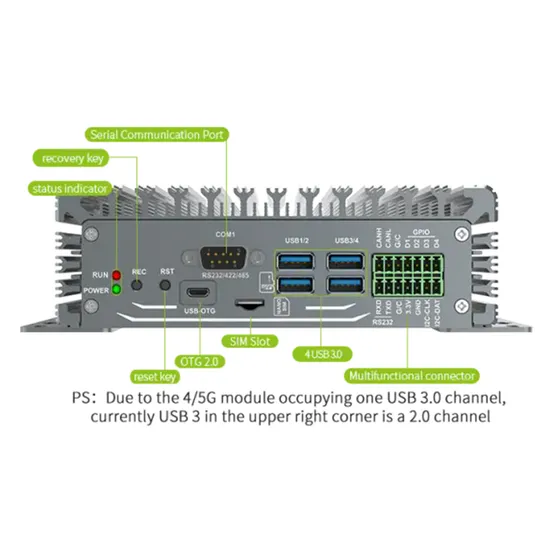

Detailed Photos
Shipping list

Power adapter (19V-3.42A)	1	Standard
Micro USB data cable	1	Standard
Double-row 6PIN power adapter cord	1	Standard
2*7P green Phoenix terminal	1	Standard
National standard power cord	1	Standard
Wall mount	2	Standard
4G antenna	2	Optional
WiFi antenna	2	Optional
5G antenna	4	Optional

FAQ 1. Are you factory or trading company?
We are factory with over 20 R & D engineers, our price is very competitive, after-sales service is guaranteed.

2. Do you provide OEM/ODM service?
Yes, OEM/ODM service is available.

3. What payment method do you accept?
T/T, Paypal, L/C, etc.

4. What is your lead time?
1 day for edge computing development kit, 3 days for edge computing box, 30 days for customization service.

5. What is the warranty?
2 years. We have a professional team dealing with after-sales issues.

---
