High Speed Cutting Machine Paper Rolls Paper Design Cutting Machine Paper Cutting Machine Price

Product Description

Automatic A4 Size Paper Cutting Machine Industrial Guillotine Paper Cutting Machine Industrial Paper Cutting Machines A4 paper slitting and packaging machine is suitable for automatically slitting office paper and glossy photo paper of various specifications, and can also be used for one-time slitting of PET, self-adhesive and paper-plastic composite materials of various specifications.

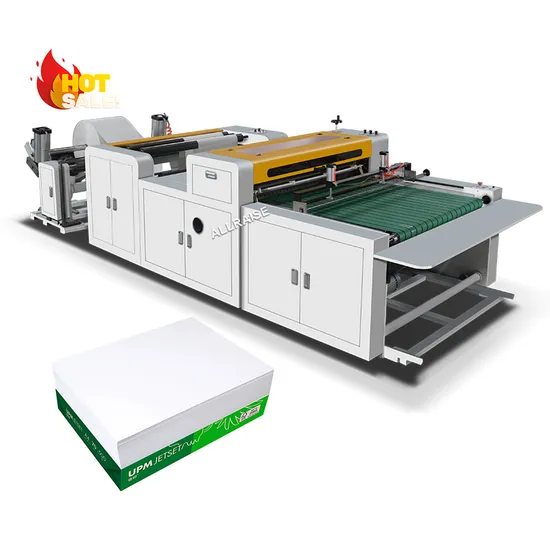

Product Name	Paper Roll To Sheets Cutting Machine
Model	1100
Max. speed	10-160times/min
Max cutting width	1100mm
Cutting length	150-500mm
Max unwinding roll diameter	1400mm
Servo motor	5.5kw
Voltage	380V,3PH
Weight	1500kg

OVERALL PERFORMANCE 1. A4 Paper Roll To Sheets Cutting Machine adopts servo motor fixed length cutting, adopts PLC program control system centralized control, according to the market roll material, through the program to carry out one-time slitting into different specifications required. At the same time, through the conveyor belt, it is transported to the finishing table for automatic stacking, and the conveying part is isolated by stainless steel baffles, and the left and right materials will not be crossed, and the finishing is flat. Easy operation and high degree of automation; Compared with the traditional slitting process, it saves labor. 2. The transmission system is centrally controlled by mechanical cams, combined with pneumatic, photoelectric sensors and other systems, and the discharge system adopts cylinder inflatable shaft automatic lifting device with a large loading capacity; This machine integrates light, electricity, gas, integration, high cutting accuracy, mechanical stability, low noise and other advantages.
3. The main motor adopts advanced functions such as frequency conversion speed regulation, automatic counting, alarm parking, tension digital display, etc.

---
