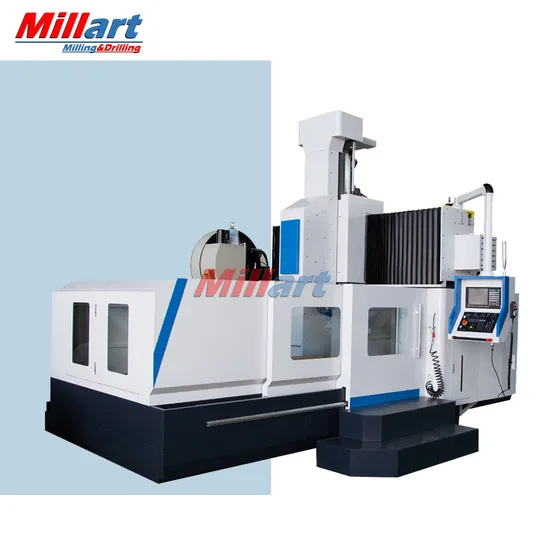

High Efficiency CNC Double Column Machining Center Xh1613, Heavy Duty Gantry Type Milling Machine

Product Description

Product description:
Technical parameter :

Item	Unit	XH1613
X axis travel	mm	1600
Y axis travel	mm	1300
Z axis travel	mm	650
Spindle nose to worktable	mm	130-780
Distance between two column	mm	1400
Leadscrew diameter	mm	50/45/45
Linear guideway width	mm	45/45/45
Worktable Length	mm	1600
Worktable width	mm	1300
T slot qty-width*distance	mm	7-22*170
Max loading capacity	Ton	2
Spindle speed	rpm	8000/belt
Spindle motor power	kw	15
Fast moving speed	m/min	20/20/10
Cutting speed	mm/min	1-10000
Spindle taper		BT50
X/Y/Z axsis motor torque	Nm	30/30/30
Tool Magazine Capacity	pcs	Disc/24
Positioning accuracy	mm	0.016/0.015/0.015
Repeat accuracy	mm	0.012/0.010/0.010
Length	mm	3600
Width	mm	2600
Height	mm	3000
Weight	kg	13000

Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
