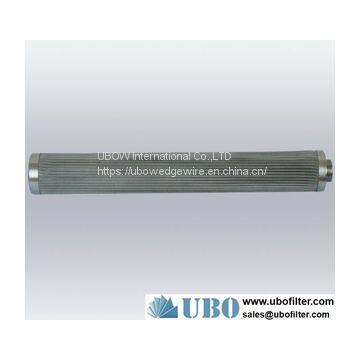

UBO is specialized in producing and distributing filter, filter element,polymeric filter,filter strainer,wedge wire screen etc.
Features:
1. Complex structure, high filtering precision
2. Large dirt holding capacity, long service lifetime
3. Good corrosion resistance and pressure resistance
4. Increased flow quantity per unit area
e. woven type stainless steel mesh, with homogeneous pore distribution, high strength, and easy to clean.
6. Small resistance, low using differential pressure;
7. After folding shape, big filter area, carrying a large amount;
8.High-temperature resistance, corrosion resistance, suitable for high viscous liquid filtration;
9. Regeneration performance is good, can be repeated use.
Application:
The filter has been widely used in transformer oil, turbine oil, hydraulic oil, aviation kerosene, petroleum, chemical, power plant, coal carbon, mining, pharmaceutical, food, and engineering industries.
Specifications:
Specification
um(c)
| filter rating
um(c)
| Bubble point pressure
(pa)
basic deviation
(±10%)
| air permeability
L/(min•dm2)
basic deviation
(±20%)
| porosity(%)
basic deviation
(±10%)
| Dirt holding capacity
(mg/cm2)
basic deviation
(±20%)
| Thickness
(mm)
basic deviation
(±10%)
| breaking tenacity
(mm)
basic deviation
(±20%)
|
5
| >4-6
| 6800
| 47
| 75
| 2.5
| 0.30
| 32
|
7
| >6-8
| 5200
| 63
| 76
| 3.8
| 0.30
| 36
|
10
| >8-13
| 3700
| 105
| 75
| 4.0
| 0.37
| 32
|
15
| >13-18
| 2450
| 205
| 79
| 6.8
| 0.40
| 23
|
20
| >18-23
| 1900
| 280
| 80
| 11.5
| 0.48
| 23
|
25
| >23-28
| 1550
| 355
| 80
| 18.0
| 0.62
| 20
|
30
| >28-35
| 1200
| 520
| 80
| 22.0
| 0.63
| 23
|
40
| >35-45
| 950
| 670
| 78
| 32.0
| 0.68
| 26
|
>>
