Basic Info.
Classification of Financial Binding Machine
Full-automatic
Classification of Wire Binding Machine
Multi
Working Speed
800-1800 Books/Hours
Max. Book Size
400mm(Binding Side)*420mm
Min. Book Size
100mm(Binding Side)*140mm
Thickness of Punch for One Time
1-6mm
Max. Punching Thickness
13mm
Transport Package
by Strong Seaworthy Export Packing
Specification
4000mm*2500mm*1600mm
Packaging & Delivery
Package Size
400.00cm * 250.00cm * 160.00cm
Package Gross Weight
1250.000kg
Product Description
Product Advantages

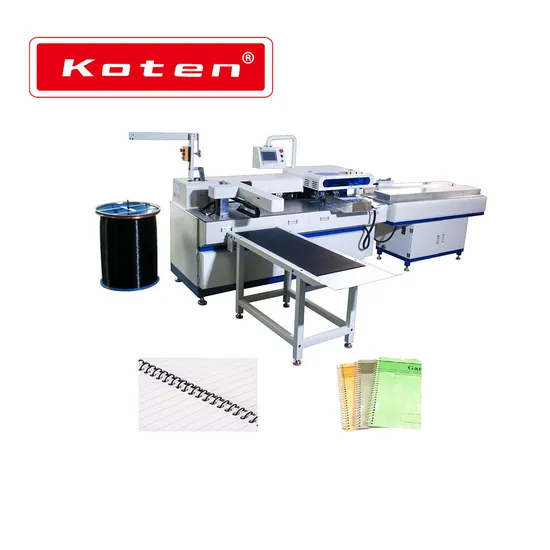

Automatic Punching,Forming Single Spiral and Binding Machine,was researched and developed for the first time in China.The machine has above eight items of patent for invention, which can improve the efficiency above 60%, it can produce the product at high speed, such as notebook, instruction book and so on. The machine can automatic feed the book, automatic punch one book several times,automatic adjust the hole,automatic bind,automatic form the spiral, automatic receive the book.
1.The machine only need one general man to operate.
2.High quality of punch mould, it can punch at most 3-6mm, which can add the oil automatic. One mould has two sides with two sizes of the hole, which makes the mould can be used for 3-5 times of life than the normal mould.
3.It just need one minute to change the mould size.
4.The machine can positioning the hole automatically.
5.Automatic remind the malfunction.
Paper Splitting Unit Punching Unit
Model
| HB-400PBF
|
Working Speed
| 800-1800 books/hours
|
Max. Book Size
| 400mm(Binding Side)*420mm
|
Min. Book Size
| 100mm(Binding Side)*140mm
|
Thickness Of Punch For One Time
| 1-6mm
|
Max. Punching Thickness
| 13mm
|
Max. Punching Times
| 5 times/per book
|
Max. Feeding Belt
| 400mm*400mm
|
Binding Diameter/Coil Specification
| 1/4 - 5/8
|
Coil Pitch
| 4:1(6.35mm), 3:1(8.47mm)
|
Air Compressor Power/Air Pressure
| 3KW / 7-8bar
|
Power Supply/Total Power
| 220V / 6KW
|
Machine Size
| 4000mm*2500mm*1600mm
|
Weight
| 1250kg
|
Name
| Brand
|
Touching Screen
| WEINVIEW(TaiWan China)
|
PLC
| Mitsubishi(Japan)/Delta(Taiwan China)
|
Power Protection Switch
| CHNT(China)
|
Stepping Motor
| Leadshine(China)
|
Solid State Relay
| FOTEK(TaiWan China)
|
Wwitching Power Supply
| China
|
Cylinder
| AirTAC(TaiWan China)
|
Stepper Motor Driver
| Leadshine(China)
|
Phototube
| TaiWan China
|
Photoelectric Sensor
| FOTEK(TaiWan China)
|
Servo
| Delta(Taiwan China)
|
Motor
| GPG(China)
|
Linear Motion Guide
| Hiwin(TaiWan China)
|
Electric Appliance
| CHNT(China)
|
>>
