| US$80,000.00 | 1 Piece (MOQ) |
| Type: Extrusion Blow Molding Machine | Application: jerrycan etc | |
| Model: TVHD-20L | Material: PE,PPetc | |
| No. of station: 2 | Layers: Mutiple layer for choose | |
| Screw: 100mm 28:1 | Average Power Consumption: 68kw | |

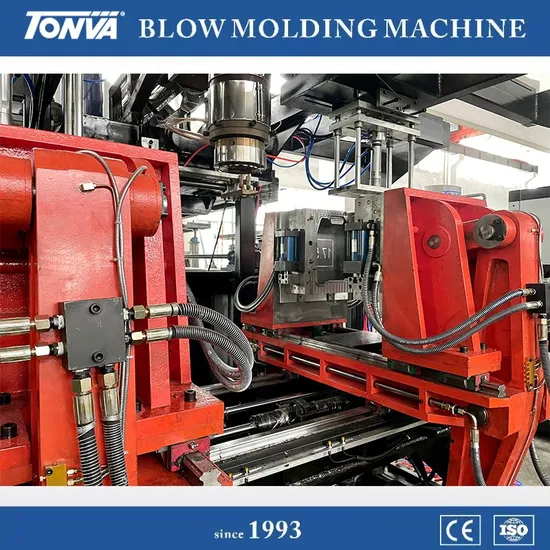

| TVHD-20L-III Machine: This 20L Three layers co-extrusion model is the most popular choice in the countries with edible oil export demand, its production ranges from 5L to 30L three-layer jerry can. Besides its high efficiency and long durability, what is so special about this machine is that, the recycle plastic resins and the calcium carbonate (CaCO3) that can be added in the middle layer can help to reduce material cost by 12-15%. In contrast, for the single layer jerry can, you can only add around 5%-7% of CaCo3, which has no evident improvement over material cost savings. The outer and inner layer are composed of 15%-20% virgin material and master batches. The middle layer can be composed of around 60%-70% cost effective regrind material and can add up to 30% of CaCo3. The most common products made with this machine are: - 10L, 15L, 20L, 25L round shape jerry can. - 10L, 18L, 20L, 25L cooking oil jerry can. - 5L lubrication bottle. - Pharmaceutical jerry can. - Pesticide bottle. - 2 layers anti-UV bottle - Multi color products. | ||
| Main Features: -It is suitable for the production of plastic hollow products of PE, PP,ABS,PS,PVC,PC and other materials; - PLC+HMI,Chinese / English and other language operation interface; - According to the characteristics of different plastics, different screw and die mandrel and runner style can be designed; - The double proportional valve controls the flow rate and pressure of the oil passage, the reversing valve controls the flow direction, and the brake of the deceleration valve is smooth and quick; - The toggle-type clamping structure is designed by the front and back colleagues of the template center to ensure the uniformity of the clamping force; - Automatic lubrication system, automatic alarm function, pay more attention to user experience.- Center feeding extrusion,bo blind angle,fast color and material changing - Automatic MOOG 100point parison control- Hybrid system,give fast responding,saving energy - Servo system,to save electricity - View stripe line,easy knows the liquid volume inside - Liftable extrusion platform for easy adjustment of the length of the blank; | ||
