Manufacturer Multi Channel Gas Alarm Controller with Fixed Gas Detector

Product Description

Manufacturer Multi Channel Gas Alarm Controller with Fixed Gas Detector

>>>Product Description

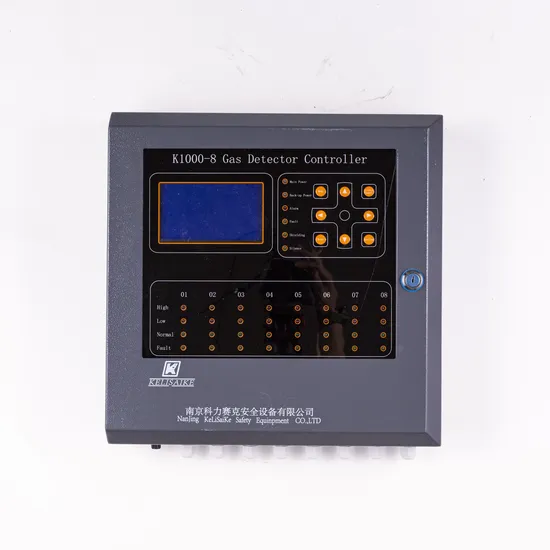

K1000-8 gas control panel is a multi channels style, be used to detect the concentration of the test gas in the air, connecting with a plurality of detectors for different gas components, and centralized control of multi-point at the same time. System uses a microprocessor as control unit, high-precision sensor as detection transmitter. When the concentration of tested gas in the environment reaches or exceeds the preset alarm value, the control panel send audible alarm immediately, alert us take safety measures, and start the actuator to drive the exhaust control devices or other peripherals, prevent poisoning, explosion and fire to protect life, property and production safety.
>>>Features
1. Advanced MPU technology
2. Multi-channels capacity of system: 4,8,16 and 32 channels are available
3. Work in patrol type
4. 2 or 3 BUS signal outputs can provide 24V power for the transmitter
5. Multi-channels real-time concentration display circularly and show real-time data(around 1-2 seconds show one channel)
6. Bright LED display
7. Receive any 4-20mAt output signal from transmitter
8. RS485 Industrial field BUS
9. Programmable alarm operation value, low or high level alarm indication.
10. Respones time less than 2 seconds
11. Backup power supply: over 2 hours
12. Output Power: DC 24V/2.5A (can provide power for many transmitters)

>>>Technology Specifications

Working Method:		Automatic Patrol
Alarm Level:		two levels' alarm. Users can set it.
Input signal:		4-20mA signal (RS-485 signal)
Measurement Accuracy:		<±0.2%
Stability:	Zero drift:	≤±2% (F.S)/6h
	Span drift:	≤±5% (F.S)/6h
Communication Interface:		RS485
Working Voltage:		AC 220V/50-60Hz
Capacity of System:		8 Channels
Display Method:		Multi-passage concentration real-time display
Display Error:		<0.5%
Ambient Humidity:		10%-90% RH (non-condensing)
Ambient Temperature:		0-70ºC
Weight:		Approx.7KGS

>>>Company information
Nanjing Kelisaike Safety Equipment Co., Ltd., with our headquarters located in Nanjing, is one of the most professional gas detector manufacturers in China. Established in 2004, we have always been engaged in researching, developing and bringing people advanced equipment with good quality. Through 10 years' efforts, our company has successfully grown into a powerful enterprise with advanced technology, modern equipment, solid finance and talents. So far, we have three subsidiaries in Beijing, Xi'an and Xinjiang. Our company has established business relationships with many renowned enterprises in China.
Kelisaike has put much emphasis on developing new technology and new products with intellectual property and patents. Our full product portfolio includes: K60 series portable gas detector, K800 series fixed gas detector transmitter, K500 series wall-mounted gas detector, K1000 series gas detector controller, K-1Ax gas detecting control system, KL99 positive pressure air breathing apparatus, etc.
Nanjing Kelisaike has passed ISO9001 International Quality System Certification, which ensures all products have excellent performance and competitive prices.
KELISAIKE Faith
People-oriented and technology-innovated
KELISAIKE Principle
Quality first, integrity-based
