Wholesale Constant LED Lighting Driver 150W DC Power Supply

Product Description

Wholesale Constant Voltage Waterproof LED Lighting Driver 150W DC Power Supply
Product Description Input:100-240VAC 50/60Hz
Output Voltage: 12V-48V DC
Rated Power: 150W max
Approvals: UL/CUL/CB/FCC/TUV
Features :
1. Univeral AC input/ Full range
2. Energy efficiency level VI
3. Leakage Current: <2.5mA
4. Extremely low leakage current
5. Protection:Over load/Over voltage/Short circuit
6. Life Warranty: 3 years
Applications:
- LED Street Light
- LED Grow light
- Outdoor lighting

Model:	YSCL150-1201250	YSCL150-2406250	YSCL150-3604160	YSCL150-4803125
Power:	150W Max
Input:	AC100-240V
Rated Voltage:	12V	24V	36V	48V
Current Range:	0-12.5A	0-6.25A	0-4.16A	0-3.125A
Inrush Current:	65 Amps max. at 230VAC/50Hz
Leakage Current:	<2.5mA
No Load Power Consumption :	<0.5W
Protections:	Short Circuit /Over Current /Over Voltage/over temperature protection
Working TEMP.:	-20°C-50°C
EMC standards:	ESD Test:IEC 61000-4-2 RS Test:IEC 61000-4-3 EFT/B Immunity Test:IEC61000-4-4 Surge Immunity :IEC61000-4-5 Conduted RF Immunity: IEC 61000-4-6 Power frequency magnetic field:IEC 61000-4-11 Voltage dips and interruptions,100% reduction: IEC 61000-4-11 Voltage dips and interruptions,30% reduction: IEC 61000-4-11
Dimension:	242*70*44mm
Packing:	1PC/PE BAG+INNER BOX, 50PCS/CTN, CAN BE CUSTOM

PRODUCT SHOW
MORE PRODUCTS



ABOUT YINGJIAO Yingjiao Electrical Co,Ltd. was established in 1995 and is dedicated to the designand development of all types of low voltage power adapters, LED drivers, utilizingscaled manufacturing and global sales to fully serve the world's electronic andelectric industries. The core products include switching & linear power adapters.battery chargers, transformers, LED drivers and completely customizable powersolutions, designed for use in telecommunications, IT equipment, consumerelectronic devices, security system, automation, medical equipments, smarthome, LED lights and much more.
Yingjiao owns independent high-frequency transformer and SMT workshops,along with 22 production lines for manufacturing & assembling, sell over 660million power supply products in the past years. Committed to total qualitymanagement through continuing improvement processes, including derating &reliability analytics testing, MTBF procedures are an integral part of our researchand development, with quality assurance management in support of ISO9001quality systems ensure that Yingjiao consistently offers the highest qualityproducts for our customers.
Yingjiao products comply with RoHS, PAHS, REACH and WEEE standards, AchieveCoC V5 and DoE Vl of efficiency level, obtained and maintained FCCTUV-GS, CBCSA,PSE, RCM, KC,EAC,NOM,IRAM,CE,EMC and CCC safetycertificates.
In addition to our full line of products, Yingjiao offers complete 0EM / ODMproduct development to meet your individual requirements

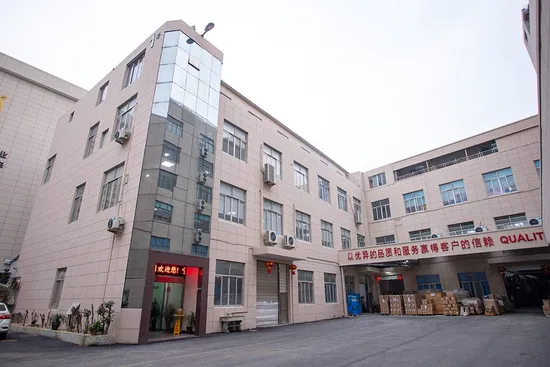

FACTORY&EXHIBITION
