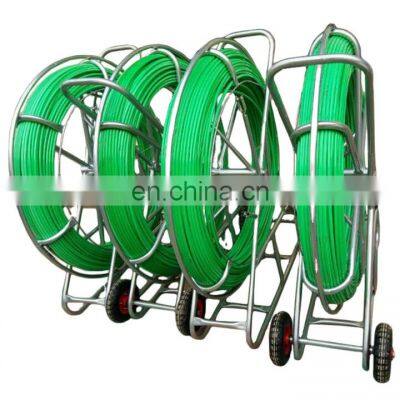

electric Power Engineering 12mm Diameter Traceable Fiberglass Cable Duct Rodder
Item: cable push pull rods
FRP push pull rod in the pipeline traction guide rope is a good auxiliary tool. Smooth and full of elasticity surface can make the fiberglass duct rodder easily through the narrow passage. Fiberglass duct rodder consists of three parts: Copper, glass fiber reinforced, high pressure low density polyethylene protective layer (smooth and strong, can be resistant to bad environment). Copper conductor article make fiberglass duct rodder can be easily placed in different ways.
Fiberglass cable duct rodder componenets
(1) Outer protect layer are made of high density polyethylene and import material.
(2) Inner Core is E-Glass Fiber.
(3) Rod material is FRPI import solid core material.
(4) There are kinds of colors and size for the rod to choose.
Fiberglass cable duct rodder features
(1) High tensile strength and bending properties, which make it to go through
narrow pipes easily.
(2) Light weight, esistance to acid, aging resistant, corrosion resistant.
(3) Good temperature adaptability, the product will neither soften in hot weather/nor become brittle in cold weather.
(4) It surface has the advantage of smooth, wear-resistant and long service life.
(5) Easy to move on.
(6) Rust prevention guide head.
Fiberglass cable duct rodder application
(1) Be used for pipe dredge
(2) Be used for cable laying
| Technical date of cable push pull rods |
| Specifications | Rod diameter (mm) | Φ4.5, Φ6, Φ8, Φ10, Φ11, Φ12, Φ13, Φ14, Φ16,....... | |
| Rod length (m) | 30m~500m | |
| Frame Spec.(mm) | 1300mm x 450mm x 1330mm
1200mm x 420mm x 1220mm
980mm x 350mm x 1000mm
680mm x 240mm x 700mm
4200mm x 1800mm x 400mm | |
| Materials | Fiber glass rod inner, | Extruded by fiber glass and high strength resin at high temperature | |
| Fiber glass rod outer | High density polyethylene coating | |
| Metal frame | Steel with high-temperature sprayed plastic or hot dip galvanized | |
| Physical properties | Fiber glass content | 75-80% | |
| Density | >1.9gr/cm3 | |
| Working environment | -40°C to +80°C | |
| Minimum pulling strength | 4000N +/-5% | |
| Consistency of rod | 137gr/m | |
| Flexural modulus | >46.500Mpa | |
| Elongation at break | 2.5-3% | |
| Min bending radius | 388mm | |
6mm cable push pull rods:
14mm cable push pull rods:
Different Color of cable push pull rods:
Product Overviews
The accessories of cable push pull rods
Our workshop
If any question about cable push pull rods, you can tell me.
We know well about all the process of producing the duct rodder.
Packaging & Shipping
Packaging: Woven bag wrap, Carton box, Tray
You can receive your order items in good conditions.
Our Services
We are a professional supplier of cable push pull rods in China.
We are shipping to many countries every year.
Glad to share our orders pictures with you.
Related Hot Sales
We also supply other cable laying tools.
Contact Information
Welcome your inquiry anytime.
We will serve you 24 hours!
>>
