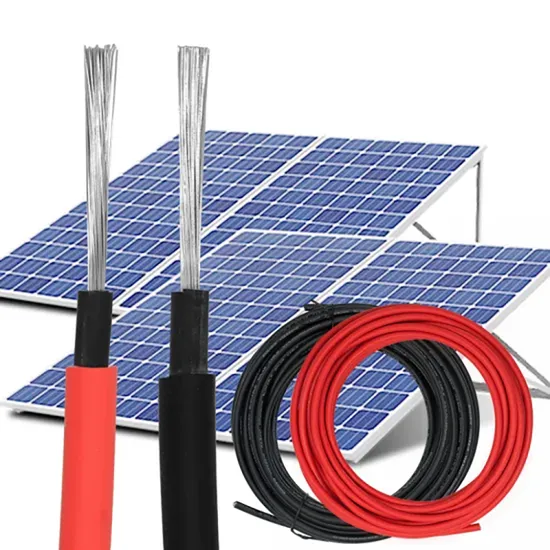

Solar Cable DC Cable (4mm2 6mm2 10mm2 2X6mm2 2X10mm2)

Product Description

PVC insulated 4mm2 6mm2 solar cable for solar energy systerm * Cables features
1. Uniform thickness to prevent breakdown and safety.2. High quality tinned copper core, high-precision oxygen-free copper, long lasting and stable elecrical conductivity3.High quality environmental-friendly polyvinyl chloride materials such as Borealis and Dow Chemical. Good flexibilty, wear resistance, corrosion resistance and good flame retardant performance.
4. Standardize product marking, specifications, production dates etc.* Cable Advantage
1. High temperature resistance, the material is not easy to melt or flow, -40 oC~90 oC2. Irradiation of the crosslinking compound.
3. UV and ozone resistant, resistant to hydrolysis4. Long service life, safe to use below 90oC.
* Application

Construction	Conductor Construction	Conductor OD	Outer Diameter	Resistance Max	Current Carring Capacity
n*mm2	n/m	mm	mm	Ω/Km	A
1*1.5	30/0.25±0.008	1.58	4.90	13.30	30
1*2.5	50/0.25±0.008	2.02	5.45	7.98	41
1*4.0	56/0.30±0.008	2.30	6.10	4.75	55
1*6.0	84/0.30±0.008	3.42	7.20	3.39	70
1*10.0	142/0.30±0.008	4.56	9.00	1.95	98
1*16.0	228/0.30±0.008	5.60	10.20	1.24	132
1*25.0	361/0.30±0.008	6.95	12.00	0.795	176
1*35.0	525/0.30±0.008	8.74	13.80	0.565	218
1*50	720/0.30±0.008	9.20	14.80	0.393	280
1*70.0	988/0.30±0.008	11.00	16.90	0.277	350
1*95.0	1349/.030±0.008	12.50	18.70	0.21	410
1*120.0	1691/0.30±0.008	14.20	20.70	0.164	480

*Certificate

---
