Jieda PD800 Model Hanging Bag Large Volume Centrifuge

Product Description

Jieda PD800 Model Hanging Bag Large Volume Centrifuge Introduction of PD800 Model Hanging Bag Large Volume Centrifuge:
PD800 Model Hanging Bag Centrifuge is filter equipment with hermetic closure procedure task,intermittent operation and hanging bag off-site discharge.The material is fed into the drum from the top ;under the action of centrifugal force field ,the liquid -phase passes through the filter medium and is discharged out of te machine,while the solid-phase material is retained inside the drum;after the machine is stopped ,the liquid-block together with the filter bag is hoisted with the sling out of the machine and transferred to the designated discharge site.
Main Features of PD800 Model Hanging Bag Large Volume Centrifuge:
1. Frequency converter starting, stable starting, adjustable separation factor.
2. Hanging bag discharge, low labor intensity, high work efficiency
3. The reasonable structure design effectively eliminates dead corner of sanitation. The structural parts adopt smooth transition and the surfaces are subjected to polishing treatment. The external structural parts, fasteners and bowl are all made of stainless steel. The housing adopts flap type cover, so that the space between the housing and bowl can be cleaned thoroughly.
4. It is equipped with the spray cleaning system to carry out CIP cleaning of the centrifuge, including cleaning of inner walls of the housing, interior and exterior surfaces of the bowl, surfaces of the liquid collector and other invisible parts inside the centrifuge. It complies with the requirements in the GMP standard.
5. Simples structure, convenient operation.
6. The grains are not easy to break.
7. It is equipped with the nitrogen protection system to ensure air isolation between the inside cavity and the outside of the centrifuge.
8. Good versatility and wide application range.
9. Closed structure. The seal is made of silicone rubber or fluorine rubber to meet the requirements of sealing and anti-explosion. It is suitable for poisonous, inflammable and explosive applications. Application of PD800 Model Hanging Bag Large Volume Centrifuge:
It is applicable to the separation of suspension containing solid-phase granules with the diameter greater than 0.01mm.And it is especially applicable to the filtering of toxic and flammable materials.
Main Technical Parameters of PD800 Model Hanging Bag Large Volume Centrifuge:

Model	Drum					Separation Factor(ω²r/g)	Motor Power(KW)	Machine Weight(kg)	Dimensions(mm)
	Diameter(mm)	Wall Thickness(mm)	Working Volume(L)	Loading Limit(kg)	Speed(R/Min)
PD-800	800	8	100	135	1200/1500	645/1006	5.5/7.5	1500	1800*1300*1200
PD-1000	1000	10	140	200	1000/1200	560/806	7.5/11	2500	2000*1400*1280
PD-1200	1200	10/12	240/350	325/470	960/1050	620/740	15/18.5	3200	2300*1700*1240
PD-1250	1250	10/12	400	530	960/1050	645/770	18.5/22	3800	2300*1700*1510
PD-1500	1500	12/14	520	700	650/850	355/606	22/30	4800	2500*2000*1600
PD-1600	1600	18	700	945	850	647	37	7200	2900*2160*1975
PDF-800	800	8	100	135	1500	1000	7.5	1350	1220*1220*1210
PDF-1000	1000	10	140	200	1100	675	11	2200	1400*1400*1350
PDF-1200	1200	12/14	325	325	1000	670	15	3000	1700*1700*1215

Drawings of PD800 Model Hanging Bag Large Volume Centrifuge:
1. Shock absorber
2. Frame
3. Shell
4. Bowl part
5. Bearing pedestal
6. Cover
7. Oblique sight glass
8. Explosion-proof light
9. Washing pipe
10. Feeding pipeline
11. Flap turning device
12. Motor
13. Liquid discharging pipe
Hanging Bag Discharge Schematic Diagram:

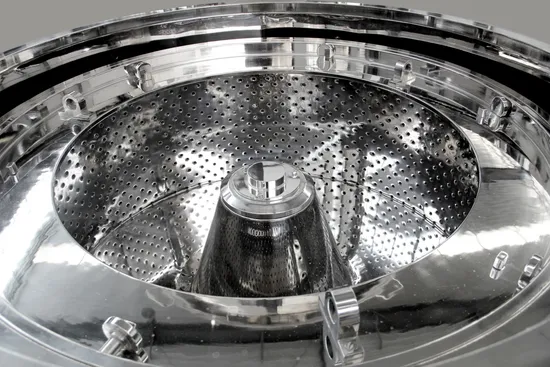

Photo of PD800 Model Hanging Bag Large Volume Centrifuge:
Company Profile:
Founded in 2001, Jieda Centrifuge specializes in technical research and development, project design, equipment manufacturing, product sale and application services in the filtering and separating fields. Our company is a National High-tech Enterprise, a Private Technology-oriented Enterprise in Jiangsu Province, a member of Separating Machinery Division of China General Machinery Industry Association, a member of National Filtering Professional Technical Association, and a member of China Association for Pharmaceutical Equipment.
With a wide variety of products, we focus on providing whole-course services and offering overall filtering and separating solutions for such industries as medicine, chemical industry, food, environmental protection and metallurgy. With complete manufacturing equipment and advanced management concepts, our company has been certified to the ISO9001 international quality system and GMP. Our products have been underwritten by PICC P&C. While focusing on technical innovation, our company has cooperated with Jiangsu University of Science and Technology to establish the postgraduate work station and build the centrifuge separating technology research center, continuously climbing high peaks in the centrifugal separation field.
Constant pursuit of perfection will surely create distinguished products and accomplish prominent quality. With higher passion, more extraordinary belief, as well as excellent products and services, Jieda personnel will realize future prosperity and dreams.
Certificates of Our PD800 Model Hanging Bag Large Volume Centrifuge:
Our Centrifuge Workshop:
Jieda has high-precision CNC machining tools and machining centers, advanced production equipment, fine technique and strict and perfect quality management system, and moreover, we gather professional elites and science and technology team with leading level, so as to make full use of new technologies, new techniques and new materials to guarantee stability and reliability of products. Our product quality originates from advanced manufacturing means, and the concept of fine products stems from continuous innovation.
Why Choose Us:
1. Professional team for you selecting suitable Centrifuge and give you best after-sale service
2. Good quanlity for the Centrifuge running stably
3. Reasonable Price & Fast Delivery
