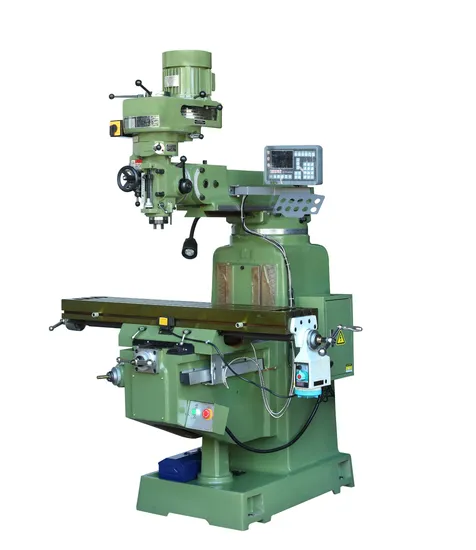

Vertical Universal Arm Type Turret Milling Machine 4HG Universal Turret Vertical CNC Milling Machine with CE for Metal

Product Description

Mechanical characteristic
The casting is made of Meehanna cast iron, with good rigidity, no deformation and good stability.
Spindle is equipped with precision bearing combination, strong cutting force and excellent accuracy.
The end milling head adopts a unique inverted hanging design, with good accuracy, easy operation and easy braking. (Customers can select special function products)
The nuts on the three-axis screw are made of advanced phosphorus meter copper, good wear resistance and long service life.
XY shaft slide after high frequency ripening treatment, good tail wear resistance, increase service life.
Equipped with lubrication system to ensure smooth slide.

Product Parameters

Product Name
Product Name	Milling machine
Product model	4HG
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	760MM
	Anteroposterior stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-410MM
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	180° around / 45° front and back
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*75MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	10.Clamp plate	1
	11, NT40 chuck/Z axis automatic lifting device	1

Detailed Photos

---
