Hot Sale Factory Price Outdoor Light Customized LED Street Light 100W with Smart Driver Sensor IP66 Waterproof Projector Solar Outdoor Lighting Projector

US$74.00-150.00 1 Piece (MOQ)

Basic Info.

Model NO.
L508A-M
Lamp Body Material
Aluminum
Power
70-300W
Application
Square, Highway, Garden, Parking Lot, Street Airport Pathway Ubran
IP Rating
IP66
Certification
CB, DLC, CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, VDE, SNI
Input Voltage
90-305V
With Light Source
With Light Source
LED Chips Brand
Osram
Surface Treatment
Powder Coating Anti-Corrosion Anti-Salt Spray
Housing Color
White Black Grey Customized
Beam Angle
Type II Type III Type IV Type V
Lpw
120lm/W - 200lm/W
Material
Tempered Glass PC Lens Wago Connector Aluminum
Driver
Meanwell Inventronics Moso Sosen Do
LED Type
5050 / 3030 /3535 LED Chip
Option
Microwave Sensor Zhaga NEMA
Tooling
Die-Casting Aluminum Private Mould
Anti-Vibration Rating
Horizontal Vertical Adjustable
Service
Dialux Light Simulation
Application 2
Urban Public Lighting Area Lighting Airport Lighti
System Power
50W 60W 100W 120W 150W 200W 250W 300W
Surge Protection
10kv SPD / 20kv SPD
Projector
Projector
Transport Package
Carton
Specification
840*380*180mm
Trademark
ZQ
Origin
China
HS Code
9405429000
Production Capacity
200000

Packaging & Delivery

Package Size
840.00cm * 340.00cm * 200.00cm
Package Gross Weight
11.000kg

Product Description

Product Description
Product Features

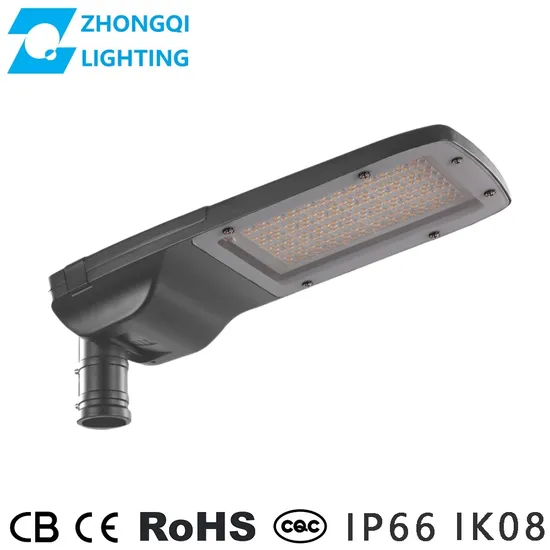

L508 for urban and street lighting of high architectural value
High pressure die casting housing, which has advantages of impact resistance and corrosion resistance.
3G vibration test approved under American standard ANSI C136.31.
Luminous flux can maximum 180 lumen per watt, Different CCT is available on customer request
High light transmittance lens available: TYPE II, TYPE III, TYPE IV, TYPE V
Tempered glass protect PC lens exposing from UV, moisture, dust environment, better lighting output effects
IP66 driver chamber structure, different configurations can be integrated with IOT Smart System for creating modern Smart Cities
Horizontal and vertical mounting options
Toolless operation design makes fixture easy to install and maintain
Product Parameters
TECHNICAL PARAMETERS
Item name Input voltage Freqency range Power Factor CRI CCT Lifetime Ta
Street light AC90-305V 50/60HZ 0.95 >70 2700-6500K >50000H 25ºC~55ºC
IP Grade IK LPW THD Dimming Color Mounting Pole diameter
IP66 IK08 100-160 ≤20% YES Customized Adjustable 48-60mm
Product Model Power(W) Premium LPW(lm/W) Standard LPW(lm/W) N.W.(kg) G.W.(kg) Product Size(mm) Packaging Size(mm)
ZQL-L508 30 150 130 3.40 4.10 469*230*94 500*175*140
ZQL-L508 50 150 130 3.50 4.20 469*230*94 500*175*140
ZQL-L508 100 150 130 4.50 5.40 628*230*94 690*230*140
ZQL-L508 150 150 130 4.70 5.60 628*230*94 690*230*140
ZQL-L508 200 150 130 4.90 5.80 628*230*94 690*230*140
ZQL-L508 250 150 130 9.20 10.40 795x320x140 840*380*180
ZQL-L508 300 150 130 9.50 10.70 1035x320x140 1080*380*180
ZQL-L508 400 150 130 12.10 13.60 1035x320x140 1080*380*180
ZQL-L508 500 150 130 12.50 14.00 1035x320x140 1080*380*180
Product Applications
Product Details
Company Profile
Packaging & Shipping
FAQ
Q1:Can I have a sample before quantity orders?
Yes,we welcome sample order for your approving
Q2.What about lead time?
Sample 3-5 days, quantity order 25-30 days
Q3.ODM or OEM is accepted?
Yes,we can offer ODM&OEM service
Q4.Howe long the warranty for your products?
We offer 2-5 years warranty to our products
Q5.What about the payment?
30% TT deposit, 70% before shipment
