| US$40.00-100.00 | 50 Pieces (MOQ) |

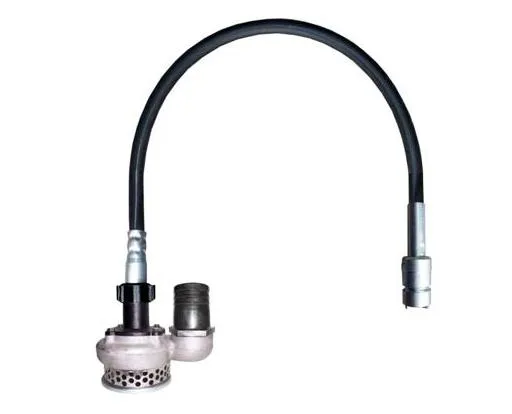

| PICTURE | | |||
| Manufacturer Model | TC-FP 50 | TC-FP 80 | ||
| ENGLISH DESCRIPTION | FLEXIBLE SHAFT PUMP YHP 2" 6M | FLEXIBLE SHAFT PUMP YHP 3" 6M | ||
| PORTUGUESE DESCRIPTION | BOMBEADOR SUBMERSIVEL 2" PARA ACOPLAMENTO EM EIXO FLEXIVEL | BOMBEADOR SUBMERSIVEL 3" PARA ACOPLAMENTO EM EIXO FLEXIVEL | ||
| NCM CODE | 84137099.90 | 84137099.90 | ||
| OUTLET SIZE | 2" | 3" | ||
| REQUIRED SPEED FROM MOTOR/ENGINE | 2900 ~ 3600 RPM | 2900 ~ 3600 RPM | ||
| MAXIMUM DRAINAGE CAPACITY | @2900RPM: 63000 litre/h @3600RPM: 64500 litre/h | @2900RPM: 73000 litre/h @3600RPM: 74500 litre/h | ||
| MAXIMUM HEIGHT | @2900RPM: 16m @3600RPM: 26m | @2900RPM: 15m @3600RPM: 25m | ||
| RUBBER HOSE OUTSIDE DIAMETER | 32mm | 32mm | ||
| HOSE LENGHT | 6m | 6m | ||
| SHAFT DIAMETER | 13mm | 13mm | ||
| COUPLING TYPE | DYNAPACK TYPE/BALL TYPE/PIN TYPE | DYNAPACK TYPE/BALL TYPE/PIN TYPE | ||
| COUPLING LOCK TYPE | SIDE PIN/PLUNGER | SIDE PIN/PLUNGER | ||
| UNIT PUMP HEAD WEIGHT | 5KG | 5kgs | ||
| UNIT SHAFT ASSEMBLY WEIGHT | 13.7kgs | 13.7kgs | ||
| CONTAINER QTY | 200 /600 | 200/600 | ||
| COLOR SCHEME | ||||
| PUMP | GRAY/BLUE/ORANGE | GRAY/BLUE/ORANGE | ||
| RUBBER HOSE | BLACK | BLACK | ||
| MALE COUPLING | Yellow | Yellow | ||
DECALS | ||||
| DECALS ARTWORK | LOGO PRINTED DIRECT ON RUBBER HOSE | LOGO PRINTED DIRECT ON RUBBER HOSE | ||
| PACKING | ||||
| TYPE FOR PUMP | PUMP + DYNAPACK MALE COUPLER ON UNIT CARTON | PUMP + DYNAPACK MALE COUPLER ON UNIT CARTON | ||
| TYPE FOR SHAFT | SHAFT UNIT ON PLASTIC FILM + BULK PALLET | SHAFT UNIT ON PLASTIC FILM + BULK PALLET | ||
| DIMENSIONS (PUMP) | PLEASE INFORM | PLEASE INFORM | ||
| DIMENSIONS (SHAFT) | 1100*1100*1200mm/110shaft on one pallet | 1100*1100*1200mm/110shaft on one pallet | ||
