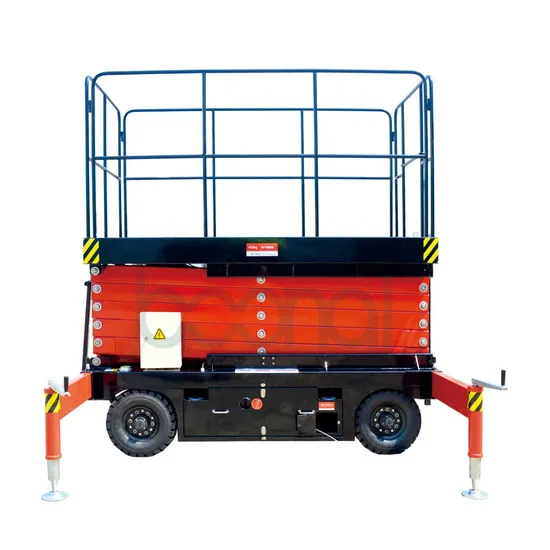

Mobile Scissor Lift (upgraded) Max Platform Height 6 (m)

Product Description

Company Introduction
Boonai (Suzhou) Lift Equipment Co., Ltd as a mordern manufacturing enterprise is specialized in aerial work platform,
providing package service for design, production, sales and after-sales.
With business philosophy of "Quality First, Client Oriented", we are striving for building a reputable brand of Boonai
by following the steps of the giants for the innovation of products and the improvement of process and purchasing
the perfection on every detail.
Product Description
Made of wide section manganese steel providing more stability when lifting Inching control for lifting and lowering,
ground / platform control mode could be switched. Control voltage: DC 24V Equipped emergency lowering device,
enable safe lowering when power off Double contactors and double limit switches are provided In chassis is slide-out
engine tray, convenient for maintenance Forklift pockets are made for transportation.
Product brand :Boonai
Mobile Scissor Lift (upgraded) Max platform height 6(m)
Apply to Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

Model	SJY0.45-5	SJY0.45-6A	SJY0.45-6B	SJY0.45-8	SJY0.45-10	SJY0.45-12
Max platform height (mm)	4900	5900	6000	8000	10000	11800
Min platform height (mm)	900	980	1080	1200	1360	1480
Platform size (mm)	1450*600	1700*750	2300*800	2300*800	2300*1120	2300*1120
Rated load (kg)	450	450	450	450	450	450
Lifting time (s)	50	60	70	90	100	110
Voltage (v/hz)	AC380/50	AC380/50	AC380/50	AC380/50	AC380/50	AC380/50
Motor Power (kw)	1.1	1.5	1.5	1.5	2.2	2.2
Overall length (mm)	1500	1900	2550	2550	2550	2550
Overall width (mm)	750	900	1050	1050	1400	1400
Overall height (rails up) (mm)	2080	2160	2260	2380	2540	2660
(rails down) (mm)	1540(folded)	1620(folded)	1260(insert)	1380(insert)	1540(insert)	1660(insert)
Extended outrigger size (mm)	1400*1400	1650*1650	1800*2270	1800*2270	2250*2270	2250*2270
Tire (Ø)	250	250	400-8	400-8	500-8	500-8
Overall weight (kg)	450	650	1200	1350	1700	1850

Advantages:Extension Platform,Slide-out Engine Tray
Level,Electric Control Box
Standard Configuration: Optional Configuration:
1,Ac 380V 1,AC 220V,DC(for max 12m platform)
2,Emergency lowering valve 2,AC/DC ,manual hydraulic pump
3,Leveling device with supporting screw 3,Italian hydraulic system
4,Waterproof electric box 4,Explosion proof electric control system
5,Emergency stop button 5,Rubber solid tire ,Extension platform,Electric moving device
Boonai(Suzhou)Lift Equipment Co.Ltd
boonailift.en.made-in-china.com

---
