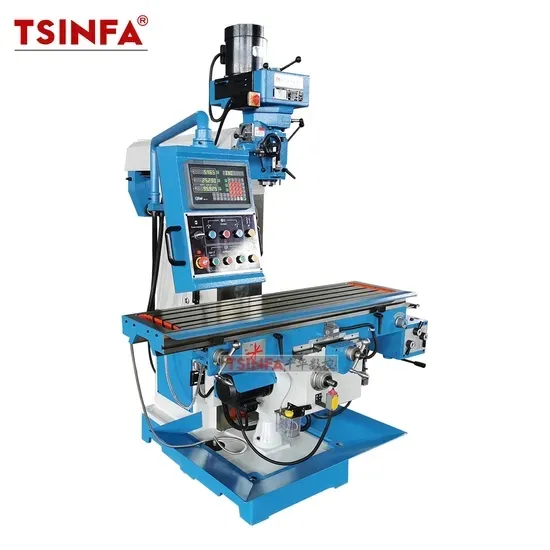

Xtr32 High Quality Universal Turret Milling Horizontal and Vertical Milling Machine CE

Product Description

Product Description
This turret milling machine is a lightweight universal metal cutting machine that can mill flat surfaces, inclined surfaces, grooves, and splines of medium and small parts. Widely used in industries such as mechanical processing, molds, instruments, and meters High spindle speed and high precision. The milling head can rotate
Product Parameters

Specification	Unit	XTR36	XTR32
Table size	mm	1500*360	1500*320
Numbers,width distance between T - slot	mm	3*18*80	3*14*70
Travel (longitudinal, cross,vertical )	mm	900*320*450	800*300*450
Horizontal spindle to worktable	mm	0-350	0-350
Level spindle taper	taper	ISO50	ISO40
Milling head spindle taper	taper	ISO40	ISO40
level spindle speed grade	steps	12	12
level spindle speed range	rpm	60-1800	40-1300
Milling Head spindle speed grade	steps	16	16
Milling head spindle speed range	rpm	80-5440	80-5440
Grade of the work-table feeds	steps	8	8
Range of feed speeds longitudinal,cross, vertical	mm/min	22-555	22-555
Feed motor	kw	0.75	0.75
Motor (Vertical Horizontal)	kw	2.2(V)/4(H)	2.2(V)/3(H)
Coolant pump	w	60	40
Gross weight/Net weight	kg	2400/2200	1600/1500
Overall dimensions (L W H)	mm	1900X1600X2000	1600X1600X2000
Packing Size (L W H)	mm	2000X1700X2250	1680X1680X2250

Detailed Photos
Certifications
Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers.
Packaging & Shipping
FAQ
Q1:How can l choose the most suitable machines ?Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .Q2: What's your main products of your company?Products cover metal cutting machine and metal forming machine two categories. Metal cuttinging machine tools are: CNC machining center, CNC lathe, manual lathe, manual milling, sawing machine, etc. Metal forming machine: hydraulic press machine.Q3: Where is our factory located? How can l visit there? Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.You are warmly welcomed to visit us.Q4. How do you transport it?Provide Transportation Solution DDP/CIF/FOB/FCAQ5: What's the Payment Terms ?T/T ,30% initial payment when order,70% balance payment before shipment .06: What's the MoQ?A: 1 set .(Only some low cost machines will be more than 1 set )We want to know:1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!2.lf need ClF Price, please kindly tell us the port of destination.

---
