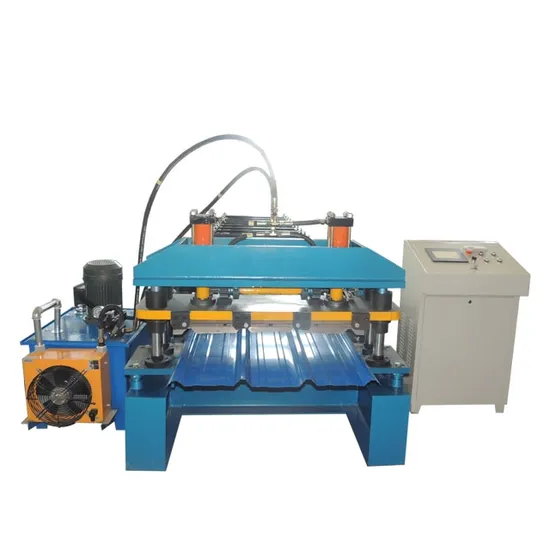

Ibr Pbr Rib AG Panel R Ranel Corrugated Galvanized Steel Glazed Step Tile Double Layer Decker Roofing Sheet Roll Forming Machine

US$12,000.00
1-2 Pieces
US$10,000.00
3-4 Pieces
US$9,000.00
5+ Pieces

Basic Info.

Model NO.
4 ribs machine
Certification
ISO
Condition
New
Customized
Customized
Usage
Roof, Wall, Floor
Transmission Method
Machinery
Material of Shaft
45# Steel
Big Frame
300h Steel
Transportation System
Chain Transportation
Chain Thickness
1inch
Transport Package
3sets/20gp
Specification
6METERS LONG
Trademark
HLD
Origin
Dezhou, Shandong
HS Code
8462911000

Product Description

Product Description
(1) Suitable material: Color steel, galvanized steel
(2) Thickness of the plate: 0.3-10.8mm
(3) Input width of the plate: 1250/1000mm
(4)Width of the plate after forming: 1000/800mm
(5) Productivity: 8-10m/min
(6) Roller steps: 16rows
(7) Roller material: 45# steel Rolling chromium thickness: 0.05 mm
(8) Diameter of active shaft: 80mm
(9) Wall thickness of the main forming machine: 16mm steel plate
(10)Main forming machine body: 300mmH steel
(11) Transmission chain is1''
Reducer is 5.5kw which works stably and no noise
(12) Cutting hydraulic systerm adpats CDF-10 gear pump, the motor power is 4kw, no noise, work stably, long life expentancy.
(13) PLC control systerm, easy to operate, high precision and work stably.
(14) Dimensions of major structure: 8500mm*1600mm*1200mm
(15) Customerized Product Parameters

suitable material color steel, galvanized steel
thickness of the palte 0.13-0.80mm
input width of the plate 1250/1000mm
width of the plate after forming 1000/800
prouctivity 8-10m/min
roller steps 16rows
roll material 45# steel
made board 16mm steel plate
main forming machine body 300H STEEL
transmission chain 1"
