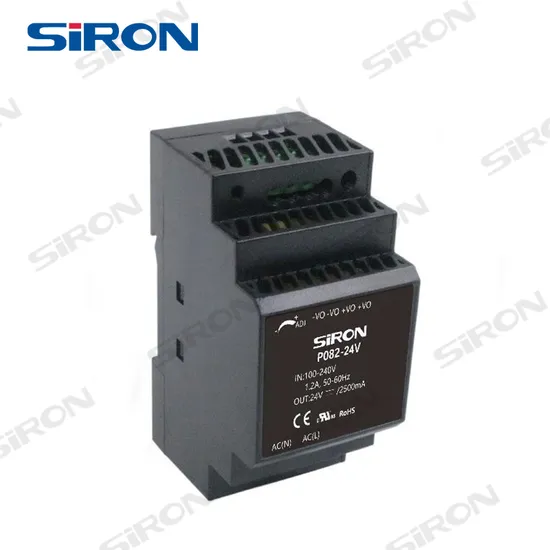

Siron P082 32.5W 54W 60W Rail Type Switching Power Supply

Product Description

Features * AC and DC dual-purpose (input voltage of the same terminal), 4000VAC high isolation withstand voltage (input-output) industrial-grade product technology design; * Overvoltage level III (complies with EN61558-1), low standby power consumption, high efficiency; * Low ripple noise, output short circuit, overcurrent, overvoltage protection, can be installed on TS35×7.5/TS35×15; Specifications Selection reference

Model	Input voltage range	Power	Output voltage/current	Efficiency
P082-5V	85-264VAC/ 120-370VDC	32.5W	5V/6.5A	84%
P082-12V		54W	12V/4.5A	88%
P082-15V		60W	15V/4.0A	89%
P082-24V		60W	24V/2.5A	90%
P082-48V		60W	48V/1.25A	91%

Product Attributes

Model		P082
Electric shock (@230VAC)		60A
Overcurrent Protection	Range	≥120%lo
	Type	self-healing
Short circuit protection		Hiccup type, continuous short circuit, self-recovery
Isolation withstand voltage		Input-output: 4kVAC (test for 1 minute, leakage current <10mA)
Operating temperature		-40ºCto+70ºC
EMC performance	EMI	CISPR32/EN55032 Class B
	EMS	IEC/EN 61000-4-2,Contac±6kv,IEC/EN61000-4-3 10V/m, IEC/EN61000-4-6 10 Vr.m.s,IEC/EN61000-4-4,5,1
Safety standard		UL62368-1,IEC62368-1,EN62368-1
Shell material		Step type flame retardant and heat resistant plastic housing
Wiring diameter		24-12AWG
Connector torque		Max 0.4N.m
Rail type		TS35
Dimensions		52×92.66×58

Product Description

Company Profile FAQ 1.What type of company are you?
We are a manufacturer,we have stock of most of products and we support customization.
2.What can you buy from us?
Terminal Block Module, Relay Module, Cable, LED Light, Sensor, Control Power Box Body, Push Button, Switch, and Auxiliary Equipment, Human Machine Interface, Frequency Converter, Servo Motor, Module, Reducer and Other Industrial Automation Control Products.
Please contact us if you do not find the product you want.
3.How about the quality of the products?
We can provide one year warranty for you and we have the certification of CE, CCC, UL, and RoHs etc.,
we could send the certification test of our company to you
4.How do you make our business long-term and good relationship?
We have agents in Thailand, Japan, Singapore, Vietnam and South Korea..., and we do hope you become our agent in the future,
welcome to discuss the deep details with us.

---
