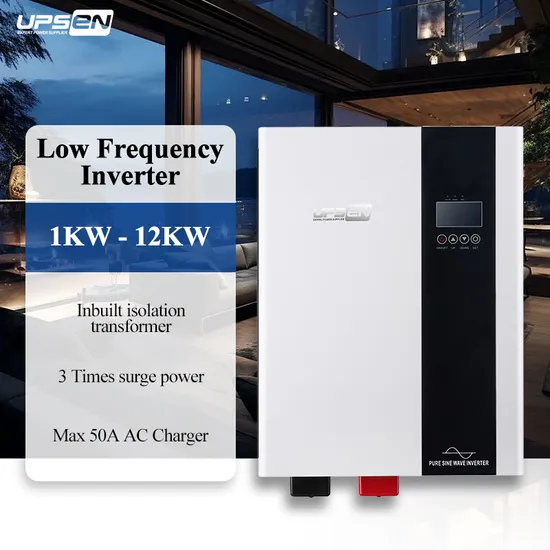

DC AC Low Frequency Power Inverter Charger 1kw 2kw 3kw 4kw 5kw 6kw with Toridal Transformer and WiFi for Home Air Conditioners Fridges Motors Tvs Bulbs etc

Product Description

DC AC Low Frequency Power Inverters 1KW 2KW 3KW 4KW 5KW 6KW with Toridal Transformer and Wifi Monitoing Card Product Description Key Features:
Pure sine wave output, with rated power: 1KW to 12KW (12V/24V/48V/96Vdc) With UPS function, DC to AC automatic conversion Wide AC Voltage & Frequency for AC and Generator Input Adjustable battery voltage for different types of batteries, such as LD: lead-acid battery (default), GEL: gel battery, LI: lithium battery. DC Cold Start and Automatic Self-Diagnostic function With 5 working modes for choose
01: Mains Priority /
02: Energy Saving /
03: Battery Priority /
04: Unattended Mode /
05: Solar Priority
High Efficiency Design Power Saving Mode to Conserve Energy Smart LCD display and setting (Working modes, Charge Current, Charge Voltage, AC range input , battery voltage ,Battery low voltage shutdown etc.) High-low voltage protection,overload, short-circuit Protection, under-voltage and over-temperature protection,over voltage, battery reverse connection (optional) etc. AC Charging current 5A -60A adjustable for 1KW - 12KW, Max 70A customizable for 4KW -12KW Model Support RS232, RS485 communication port (Optional) Support Wifi Plug for remote monitoring and management through cellphone App (Optional) Protection against:
Over load, over temperature, over charging, low battery
Reverse connection(optional by hard connector) Blackouts.Output short circuit protection.
,Temperature protection,Overload protection etc.
Application
UPSEN Power Srar Plus Series Inverter can be used for various home appliances, Emergency Lighting Systems,Toys,Fire,Security Systems,Geophysical Equipment,Vending Machines etc.

Model		W1000	W1500	W2000	W3000	W4000	W5000	W6000	W8K	W10K	W12K
Input	Rated capacity	1000W	1500W	2000W	3000W	4000W	5000W	6000W	8KW	10KW	12KW
	peak power	3000W	4500W	6000W	9000W	12000W	15000W	18000W	24KW	30KW	36KW
	Commercial Power range(VAC)	110VAC:73~137 120VAC:80~150
		220VAC:145~275 230VAC:152~288 240VAC:158~300
	Mains input frequency range	45-65HZ
Battery	DC Voltage	12 VDC /24VDC/48VDC				48VDC	48VDC/96VDC				48/96VDC
	DC input voltage range	12VDC:10.5-15VDC 24VDC:21-30VDC 48VDC:42-60VDC 96VDC:84-120VDC
Charger	AC charging	0A-35A (set on LCD Panel)
Output	Capable of starting electric motor	0.5HP		1HP	1.5HP	2HP			3HP
	AVR voltage range (VAC)	110 / 120 / 220 / 230 / 240±10%(Auto-sensing)
	Battery over voltage protection	12VDC:16.7VDC 24VDC:33.4V 48VDC:66.8V 96VDC:134V
	Battery over voltage alarm	12VDC:15VDC 24VDC:30V 48VDC:60V 96VDC:120V
	Battery under voltage protection	12VDC:10.5VDC 24VDC:21V 48VDC:42V 96VDC:84V
	Battery low voltage protection	12VDC:10VDC 24VDC:20V 48VDC:40V 96VDC:80V
	Transfer time	Typical:5ms(Including detection time)
	Temperature protection	≥85ºC alarm ≥90ºC machine shut off
	Overload	IPS automatically shut down if overload exceeds 120% of normal value for 10 seconds, IPS automatically resume work if overload comes to rated load.
	Waveform	Pure sine wave
	Frequency	Commercial power supply: shared frequency with the commercial inversion state:60/50±0.5
	Output frequency range	Tracking automatically
	(electric supply mode)
Temperature	Operating Temperature	0ºC~70ºC
	Thermal method	Cooling fan in intelligent control≤42ºC fan rotates slowly to ≥45ºC fan rotates fast
Appearance	ExternalSize(mm) (L*W*H)	460*230*200mm				650*270*200mm			763*315*248mm
	Gross Size(mm) (L*W*H)	530*330*255mm				740*350*275mm			840*405*320mm
	Net weight(kg)	17	21	22	29	37	39	43	60	63	65
	Gross weight(kg)	19	22	24	31	40	32	45	64	66	68
*Specification is subject to change without prior notice.

Detailed Photos
Company Profile Shenzhen UPSEN Electronic CO., Ltd. locates in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center,Telecom, Bank, Hospital, Transportation, Industry, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems.We are sure UPSEN can achieve more successes with our efforts and your support.
Our Advantages 1: High working efficiency and production, to be sure compeitive price
2: Strict material quality control, to be sure all materials meet CE standards
3: Independent test equipment suitable for most international standard tests

4:Each process been tested before assembling which can assure low fault rate, and improve shortages
5: Professional R&D Engineers with average bachelor degree
6: Products average upgrading every 1.5~2 years
7: 1% free unit or 2% free parts for timely warranty service
8: Free technical support before and after sales
FAQ Q1. What is packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7-20 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. Can you OEM and ODM Service?
A: Yes, we can provide free OEM Service, and ODM Service is available for volume order too.
Q6. Do you test all your goods before delivery?
A: Yes, all our products have more than 6~8 hours for againg, and strict test before dispatch
Q7. Do you have any MOQ limit?
A: Low MOQ, 5 pieces for sample checking is available.
Q8. Can I have a sample order?
A: Yes, sample order is acceptable to test and check quality for the first cooperation
Q9. How to proceed with an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirm the samples and places deposit for formal order. Finally, We arrange production.

---
