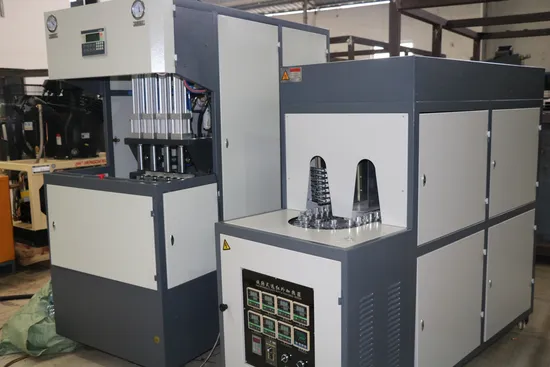

Drink Water Plastic Bottle Making Machine

Product Description

Machine features
1. blowing 0.1-1.5 liters of PET bottles (one out of four)
2. use four mold cavity mold blowing 0.5 liter bottle output can reach 1500 per hour.
3. advanced PLC control system, time control can be accurate to 0.01 seconds.
4. special air storage devices.
5. infrared bottle embryo heater.
6. different heating tube with independent temperature control device to ensure that the bottle embryo has ideal heating effect.
The direction of the 7. heating lamp tube can be adjusted according to different bottle embryos.
8. operation requires only one person, without special training.
9. installation, start simple.
10. scrap rate of finished products is lower than 0.3%.
Main parameters:

Model NO.	GMS-4C
Theoretical Output	1500pcs/hr
Max.Container Volume	2L
Max. Neck Diameter	40mm
Max. Container Diameter	95mm
Max. Container Height	320mm
Mold Thickness	120-250
Number Of Cavity	4cavity
Use Power	12kw
Working Pressure	1.0mpa
Blow Pressure	<3.0mpa
Machine Size	2.0x0.85x1.8m
Machine Weight	0.45T
Heater Size	1.7x0.65x1.45m
Heater Weight	0.5T

---
