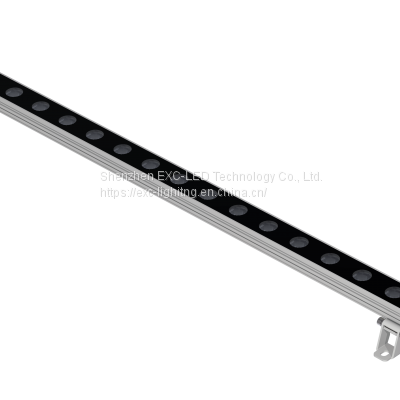

24W LED Wall Washer Landscape light DC24V outdoor lights Decoration wall

Product Details

Product Details

Product Description

Product Description
Description
EXC-W35CBL series are high power outdoor landscape LED wall washer with high strength aluminum alloy housing by EXC-LED, can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc. Versatile length allows various options.
Features
l Cancel the knapsack; light,thin,and simple in design
l Patented comb-like convection design ensure better heat dissipation
l Low thermal resistance path heat dissipation desig
l Design of unique waterproof and ventilation
l Outdoor lighting protection and electrostatic discharge (ESD) protection design
l Projection distance: 1-1.5m
Basic Specifications
Color Range
W(2200K-6500K)
Light Source
18/24 pcs LEDs
Working Voltage
DC 24V
Max. Power Consumption
18W/24W
Control
ON/OFF
Segment
1
Grey Scale
/
Source Life
50,000 h
RDM
Optional
LED chip Brand
Optional(Cree, OSRAM, Lumileds, Epistar, etc...)
Housing
High Strength Aluminum
Cover
Tempered glass
Weight
0.9KG
Working Temperature
-40°C to 60°C
Storage Temperature
-40°C to 70°C
Protection Rating
IP66
Light Intensity
1260LM/1680LM
Beam Angle
25*40°
Light Intensity Distribution
Light Intensity Chart



Physical Dimension
Unit:mm

Mounting Accessories 1:


Installation Diagram


System connection diagram:
1、Host controller should connect with slave controller. Working voltage for controllers are AC220V.
2、On-line main controller should connect with slave controller, on-line main controller and sub controller working voltage are AC220V.
3、each sub-controller with 8 ports, with each port 512 pixels, supporting data converter, supports 100 meters ultra-long haul transmission.
4、The CAT-5 e. cable distance should be within 100 meters between host controller and slave controller, between slave controllers and switch, etc.
