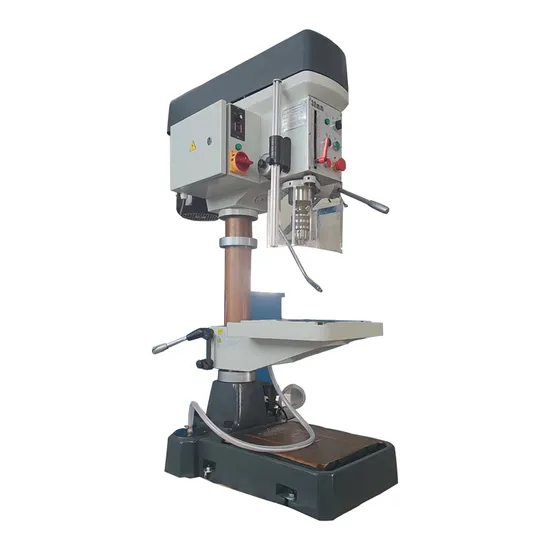

Low Noise Gear Type Manual Bench Drilling and Milling Machine

Product Description

Product Features
. Gear Head Auto Feed Drilling & Milling Machine
. Hardened Gear Large Driven Torque
. High Strength Square Column
. Easy Read Depth Ruler
. High Precision Grinding Low Noise
. Low Noise
Product Parameter

Model	AM-7016	AM-7025	AM-7032	AM-7045
Max.Drilling Capacity (mm)	16	25	31.5	45
Max.Face Milling Capacity (mm)	40	63	80	80
Diameter of Vertical Milling (mm)	10	13	22	28
Spindle travel (mm)	80	110	130	120
Distance spindle axis to column generator line (mm)	182	240	202	260
Max.Distance spindle nose to table (mm)	360	510	460	475
Spindle speeds range (r/min)	320-3300	290-2150	100-2150	95-1600
Spindle taper	MT2	MT3	MT3	MT4
Spindle speeds series	12	5	12	6
Dimension of worktable surface (mm)	420*152	555*195	730*210	730*210
Main Motor (w)	550	750	Single-phase 1100 Three-phase 1500	Single-phase 1100 Three-phase 1500
Net weight (G.W/N.W)	80/75	190/160	285/250	318/278
Packing dimension (cm)	88*62*26.5	87*67*102	86*74*124	86*74*124

FAQ
1.What models do you have?
There are many types of drilling machines, and we can recommend them according to your needs.
The best-selling series is Bench Drilling Machine,Bench Auto Feed Drilling Machine and Auto Feed Drilling & Milling Machine.
2.Do you have CE certification?
Yes, we have CE . The quality of the machine is guaranteed.
3.Can you accept OEM orders?
Of course, we can accept OEM with your trademark printed on the machine and pack it according to your design.
4.What products does your company provide?
Main products is riveting machine,tapping machine,drilling machine,self-clinching fasteners and so on.

---
