Advanced Crane Lifting Magnets for Optimized Material Handling

Product Description

, Product Description

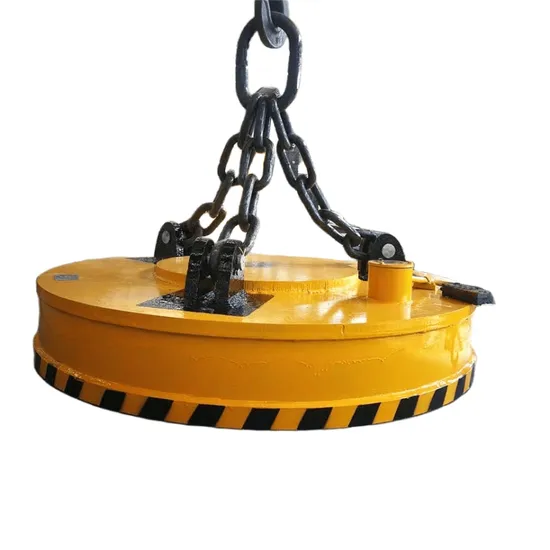

Crane Industrial Lifting Magnet
Streamline your industrial operations with our versatile Crane Industrial Lifting Magnet, designed for effortless handling of steel and other magnetic metals. Built with robust cast and fabricated components, it excels in maneuvering heavy slabs, steel ingots, bloom billets, pig iron, light finished parts, and scrap. Engineered for maximum reliability and efficiency, this powerhouse delivers cost-effective performance, even under the toughest conditions. Experience the ultimate solution for factory material handling.



Product Parameters

Model	Diameter(MM)	Current(A)	Power(KW)	Lifting capacity (cold/hot) (KG)			Weight(KG)	Excavator (T)
				Steel ball	Steel block	Iron filings
XS-70L	700	15	3.3	2500	380/200	120/100	500	3-5
XS-80L	800	18	3.96	3000	480/250	150/130	600	5-8
XS-90L	900	26.6	5.85	4500	600/400	250/200	760	10-12
XS-110L	1100	35	7.7	6500	1000/800	450/400	900	12-15
XS-120L	1200	45.5	10	7500	1300/1000	600/500	1300	18-20
XS-130L	1300	54	11.9	8500	1400/1100	700/600	1700	20-25
XS-150L	1500	71.2	15.6	11000	1900/1500	1100/900	2400	25-35
XS-165L	1650	75	16.5	12500	2300/1800	1300/1100	2700	30-35
XS-180L	1800	102.4	22.5	14500	2750/2100	1600/1350	3500
XS-210L	2100	129	28.4	21000	3500/2800	2200/1850	4800
XS-240L	2400	154	33.69	26000	4800/3800	2850/2250	9000

Product Applications
Application:
· Recycling Industry
· Railroad Industry
· Demolition Industry
· Iron & Steel Industry
· scrapyard Processing
· Waste Processing
· Underwater Applications
· Manufacturing Scrap Waste Handling
Product Production
1. Strong adsorption force, fast lifting and releasing operation speed, can complete the work quickly and efficiently.
2. Equipped with a lifting magnet with a fork arm, which can be used in special long objects and non-metallic waste loading and unloading operations.
3. Using special magnetic circuit design, the air gap magnetic density is large. The coil is made of aluminum wire, and the coil protection plate is made of rolled high manganese steel plate with good wear resistance and strong impact resistance.
4. Light weight, low energy consumption, heavy lifting capacity and long service life.
5. Reasonable insulation structure. The insulation treatment adopts vacuum drying and vacuum filling, which improves the
electrical and mechanical properties of the coil. The heat resistance grade of the insulating material can reach the special grade C.
6. The constant voltage control method is usually used. If the strong excitation control method is used, the lifting capacity can be further improved.
7. Simple structure, safe and reliable, suitable for all kinds of lifting equipment.

Company Profile
Yang Zhou Xinshi Machinery Co., Ltd. is a professional excavator attachments manufacturer in China which was found in 2016 has a lot of experience in construction machinery attachments producing
Our products include electromagnet, hydraulic grabs, orange peel grab, steel grab, wood grab, hydraulic shear, quick hitch, Hydraulic pulverizer, Hydraulic cylinders, mini excavator, various types of excavator buckets, etc
We sincerely look forward to establishing stable, long-term and strategic partnerships with new and existing customers around the world, with an eye on our bright future and mutual cooperation.
Main Products
Packaging & Shipping


FAQ
Q: Are you a manufacturer?
A: Yes, our factory was established in 2016.
Q: Are you sure your product will fit my excavator?
A: Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.
Q: How about your products warranty?
A: 12 months warranty for our products
Q: Can you produce according to customer's design?
A: Sure, OEM service available. We are a professional excavator attachments manufacturer in China.
Q: What's the MOQ ?
A: MOQ of excavator attachments is 1set.
Q: How about delivery time?
A: 7-25 work days after the payment
Q: How about the package?
A: Our equipments wrapped by stretch film packed by pallet or poly wood case or as requested.
Q: Which country have you exported?
A:United States Canada, Australia, Saudi Arabia, Korea, Peru, Egypt, Brazil, Mexico, South Africa etc.

---
