Vibration Resistance 3000mmx1500mm Hla-3kw-3015 Single Table Metal Fiber Laser Cutting Machine

Product Description

Product Description

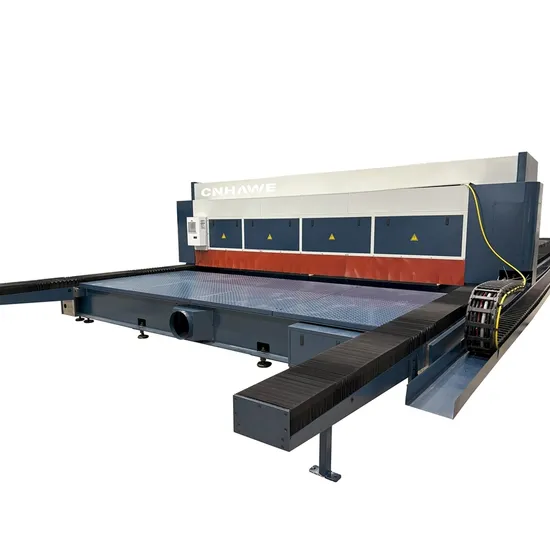

HLA Series Single-table Laser Cutting Machine
A laser cutting machine is an advanced processing equipment that uses a high-energy-density laser beam to irradiate the surface of a material, causing the material to melt, vaporize, or react chemically and be cut instantly. Its working principle is to focus the laser beam generated by the laser generator through an optical system onto a very small spot, where the power density is extremely high, enough to quickly heat up the material and reach the temperature required for cutting. Laser cutting machines have many significant advantages, such as extremely high cutting accuracy, the ability to cut complex patterns and shapes, and smooth and neat cutting edges without the need for subsequent grinding.
The highly integrated HLA SERIES single table laser cutting machine is a classic type in the CNHAWE laser family. On the basis of strict protection of the laser and electronic control device, our unique design ensures that the optical components are free from pollution during installation and debugging, and can even complete the installation of the entire machine and deliver it to customers within a few hours. In the later maintenance process, it has the feature of simple and remote teaching, greatly reducing the cost of customer use.
The application range of laser cutting machines is very wide, covering many industrial and manufacturing fields. In the metal processing industry, it can be used to cut various metal plates such as carbon steel, stainless steel, aluminum alloy, etc. In the field of automobile manufacturing, laser-cutting machines can be used to cut car body parts. In the electronics industry, laser-cutting machines can be used to cut the housings and circuit boards of electronic components.
Product Parameters

Model	HLA3015	HLA4020	HLA6020
Processing area	3000mmX1500mm	4000mmX2000mm	6000mmX2000mm
Power	1500W-20000W	1500W-20000W	1500W-20000W
X/Yaxis positioning accuracy	±0.03mm/m	±0.03mm/m	±0.03mm/m
X/Y axis repeat positioning accuracy	±0.02mm	±0.02mm	±0.02mm
X/Yaxis max.positioning speed	110m/min	110m/min	110m/min
X/Y axis max.acceleration	0.8g	0.8g	0.8g
Max.load of worktable	0.9t	1.5t	2.8t
Dimension(L*w)	5000mmX2500mm	6300mmX3000mm	8300mmX3000mm

Detailed Photos
Laser Source
Our laser cutting machine is equipped with a state-of-the-art fiber laser generator, renowned for its high efficiency and reliability. This advanced laser source delivers a consistent and powerful beam, ensuring precise and clean cuts across a variety of materials. Its design emphasizes energy efficiency and longevity, reducing operational costs and maintenance requirements. The compact and robust construction of the laser generator allows for seamless integration into our machine, contributing to its overall performance and durability. The main brands are Raycus, Maxphotonics, IPG, and nLIGHT.
Cutting Head
The cutting head of the CNHAWE laser family features a lightweight and compact design, enhancing motion efficiency and enabling faster speeds with increased acceleration. Its air-tight seal protects internal optics, ensuring longevity and consistent performance. Additionally, the optimized gas path design supports both low and high-pressure process gases, providing versatility across various cutting applications. The cutting head also incorporates an intelligent anti-collision function and versatile edge detection, enhancing operational safety and cutting accuracy.
Beam
The crossbeam of our laser cutting machine is meticulously designed using finite element analysis to achieve a perfect balance between high rigidity and lightweight construction. This optimized design enhances the machine's performance, enabling high-speed operation, excellent dynamic characteristics, and rapid acceleration, ensuring precision and efficiency in cutting applications.
Operating System
Our cutting software, based on Cypcut, is a highly efficient and user-friendly fiber laser cutting software developed specifically for optimizing the performance of our machines. It features easy installation, simple debugging, and outstanding performance. The software supports power-based speed adjustment and separate import linear speed settings, offering greater flexibility for users. With its comprehensive cutting process database, it ensures precise and reliable cutting across various applications.
Bed Frame
The bed frame of the HLA model laser cutting machine features a compact and stable design, ensuring easy operation and efficient use of space. Its mortise and tenon joint structure guarantees long-term stability and durability, while the modular integration of the electric cabinet, laser cabinet, gas path, and oil circuit enhances reliability and maintenance convenience. This high-quality structure, paired with the bus control system, provides intelligent, efficient, and user-friendly operation.
FAQ
Q1: How to get an accurate quotation from us?
A1: Please provide us with detailed information on the material, maximum thickness, and maximum width.
Q2: Can you provide OEM service?
A1: Yes, we can. Your design is accepted and your logo can be used on the machine.
Q3: How much is the shipping cost from China to your country?
A3: We can send the machine to your port or door address by sea or air. Please tell us your nearest port or address and zip code. We have reliable shipping agents to ensure safe, convenient, and on-time delivery.
Q4: How to operate this machine?
A4: Video line from our factory or we send you the video directly.
Q5: Do you provide teaching and training?
A5: Training in supplier factory.

---
