300-500kg/Hr Pet Plastic Washing Machine

Product Description

300-500kg/hr Pet plastic washing machine
Product Description

1. Our Machine raw material adopt stainless steel 304.
2. Our PET bottle crusher equiped with the force feeding pressing device,
when the pet bottle us non - pressed, having this device will effectively avoid the
bottle jump inside the chamber of the crusher, at the mean time, this device can
enhance capacity to some degree.
3. Dewatering machine is also new type: the rotary speed can reach to 2200rpm. While the old model can be 1200. the new type can dry the pet flakes to 2% moisture content.
no need the air pipe dryer and blower, and at the same time,save power for you.
PET Bottle Washing Machine
Features of plastic washing machine :
Low noise , Reasonable design
The part with water are all stainless steel 304
The wringing machine is used for the dewatering part, which has large output and high efficiency. It does not need hot air drying, which greatly reduces electricity consumption.
Working principle:

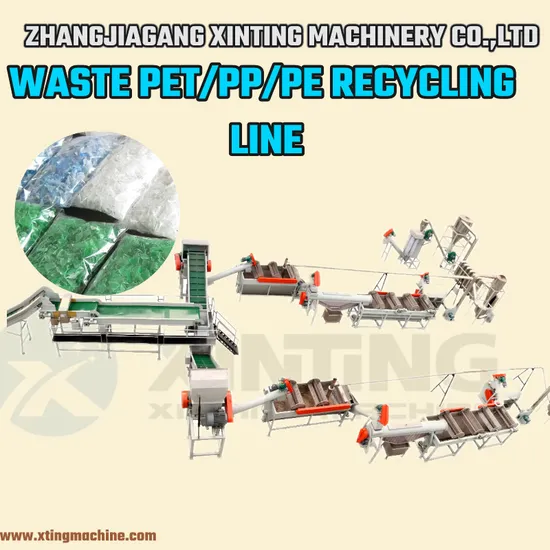

recycled PET plastic bottles, firstly to remove the labels for label remover machine, and then go though selecting table to select different color bottles ( for example, green bottles,bule bottles or other PC ,HDPE bottles etc. then go to crusher to crush , when the material come out ,then go to floating washer , to separate PET bottles with PP labels ,cups. After separating, it will go to high degree temperature hot washer boil to hot washing, then go to cold floating washer again (to remove the detergent from hot washer, then dewatering ,package.
For the different capacity ,high level bottle flakes, we can design the new plan as your requirement. Product Parameters

Technical datas

Input capacity	500kg/h	1000 kg/h	2000 kg/h
Workshop(M*M*M)	42 (L)×10(W)×6(H)	55(L)×15(W)×6(H)	70(L)×18(W)×6(H)
Ancillary staff	6Persons	8 Persons	12 Persons
Installation power	156KW	307KW	420KW
Water Consumption:	2Ton/h	3.5Ton/h	5 Ton/h
Final product	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max. 20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: Max. 20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm

Detailed Photos

---
