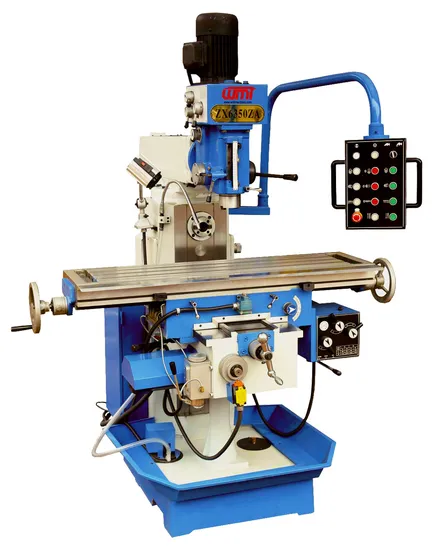

ZX6350ZA China Universal Milling Machine with Tapping Function

Product Description

Features:
Headstock swivels ±45º
ZX6350ZA vertical milling spindle auto-feeding. XYZ axis auto feeding
Main Specification:

Specification	ZX6350C	ZX6350Z	ZX6350ZA
Max.drilling dia	Φ50/Φ30mm	Φ50/Φ30mm	Φ50/Φ30mm
Spindle taper	ISO30,ISO40,R8, MT4
Max.vertical milling dia	25mm
Max boring dia	120mm
Distance spindle to table surface	100-480mm	140-490mm	80-460mm
Spindle speeds range(V/H)	115-1750rpm/40-1300rpm	90-2000/38-1310rpm	90-2000rpm/40-1300rpm
Spindle travel	120
Table size	1120×280mm	1120×280mm	1250×320mm
Table travel	600×260mm	600×260mm	600×300×430mm
Main motor power(V/H)	0.85/1.5,2.2kw	2.2,2.2kw	1.5,2.2kw
Packing size	1400×1630×2350mm	1400×1630×2350mm	1680×1480×2250mm
N.W/G.W	1200kg/1350kg	1200kg/1350kg	1450kg/1560kg

Standard Accessories:
X/Y/Z auto feeding,
coolant system,
ooling lamp,
oil tray,
drill chuck,
milling chuck 8pcs
parallel vise QH160mm,
wrench, reduction sleeve, draw bar,horizontal milling bar
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
