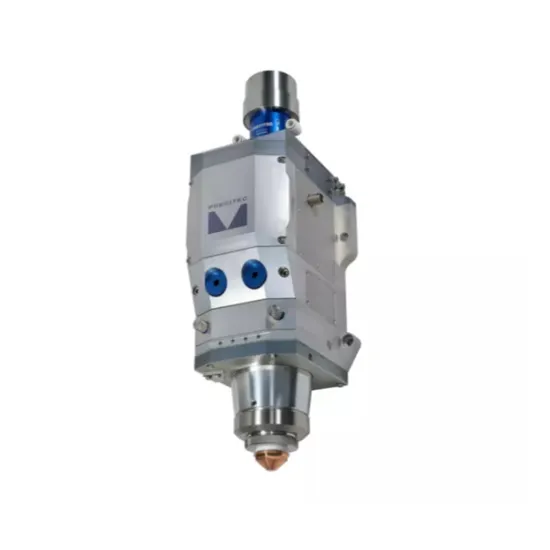

Precitec Procutter 2.0 100/150 Q+ 8kw Eg Pq0595-94281 Laser Cutting Head

Product Description

Precitec Laser Cutting Head Lightcutter Procutter 1.0 Procutter 2.0
Laser Cutting Head Professional Provider
We can provide all kinds of laser cutting heads and spare parts according to customers' requirements.
Partial Models for Precitec Procutter. If you have other models, pls kindly contact us freely.

Brand	Model	OEM No.
Precitec	Procutter 1.0 100/125 Q_C1 6KW EG	PQ0595-1052005
Precitec	Procutter 1.0 100/150 Q_C2 6KW EG	PQ0595-1052007
Precitec	Procutter 1.0 PRO 8 100/200 Q 8KW ECO	PQ0595-102198
Precitec	Procutter 1.0 PRO 8 100/200 Q 8KW EG	PQ0595-74610
Precitec	Procutter 1.0 100/200 Q+ ECO 12KW	PQ0595-102200
Precitec	Procutter 1.0 100/150 D_C2 6KW EG	Procutter 1.0 100/150
Precitec	Procutter 1.0 100/200 D_C4 6KW EG	PQ0595-1053264
Precitec	Procutter 2.0 100/150 Q+ 8KW EG	PQ0595-94281
Precitec	Procutter 2.0 100/200 Q+ 8KW EG	PQ0595-94283
Precitec	Procutter 2.0 15 100/200 Q+ 15KW EG	PQ0595-94287
Precitec	Procutter 2.0 20 100/200 Q+ 20KW EG	PQ0595-99519
Precitec	Procutter 2.0 30 100/200 Q+ 30KW EG	PQ0595-103479

Desriptions: Precitec Procutter fiber laser cutting head have 6kw 8kw 15kw three models. ProCutter 2.0 - a new generation of laser cutting heads.
The new ProCutter 2.0 Series delivers superior performance and automated performance. ProCutter 2.0 with a maximum power of 15kW+ will usher in a new era of laser cutting - faster, simpler, more efficient and more durable. The newly designed cutting head gas path enables high quality and faster cutting.
More importantly, it also provides a wider parameter window, making it easier to get the best cutting parameters. On the other hand, ProCutter 2.0 is ready for Industry 4.0. It can be docked to automatically change nozzle equipment, making production more automated and more efficient. Built-in updated sensors detect lens contamination and condensation in the cutting head and send an alarm signal. All test data can be read on the mobile terminal through the wireless network, which is convenient for the user to monitor the running state of the cutting head.
The ProCutter APP allows the status of the laser cutting head and the error query to be visualized.
Advantage
(1) Autofocus makes the cutting system more automated
(2) Lightweight design and fast acceleration
(3) Driftless distance sensor
(4) Continuous protective lens monitoring
(5) Closed light path protection
(6) PierceTec is automatically perforated
(7) CoolTec cooling technology for rapid cooling of sheet metal surface temperatures
(8) LED operation indicator shows the status of the cutting head
(9) Monitoring data can be read on a mobile terminal or CNC via a wireless network
(10) Pressure sensor in the cutting head and at the nozzle

Technical data:
8KW ProCutter (wavelength 1030 -1090nm)
Collimation lens focus: 100 mm
Focusing mirror FF: 125, 150, 175, 200 mm
NAmax: 0.13
Dimensions (width x depth): 96 x 134 mm
Weight: 4.2 kg (FF125)

15kW ProCutter (wavelength 1030 -1090nm)
Collimation lens focus: 100 mm
Focusing mirror FF: 150, 200 mm
NAmax: 0.13
Dimensions (width x depth): 96 x 134 mm
Weight: 4.9 kg (FF150)
Laser Head Brands:
Raytools Laser Head
Boci Laser Head
Precitec Laser Head
WSX Laser Head
Ospri Laser Head

Raytools Laser Head	Boci Laser head	Precitec Laser Head	WSX Laser Head	Ospri Laser Head
BM111 BS06K BS12K	Boci BLT441 BLT442 BLT642 BLT662	Precitec 1.0 2.0 Lightcutter	WSX NC30 WSX NC60	OSPRI608 808 GM08 GM08B

Precitec Laser Head:
Fiber Laser Head or Spare Parts Delivery
We can delivery the laser cutting head or spare parts by express delivery or by train or by ship.
FAQ Q: I don't know which laser cutting head is suitable for our machine?A :Just tell us below informations 1. If you want to purchase a new laser cutting head to install on your new machine, please tell us the laser source power for your laser cutting machine?
2. If you want to purchase a new laser cutting head to replace the old laser head on your machine, please send us the old laser head pictures.
Q: I don't know how to install the laser head after we received it, what should we do?A: We can provide online support such as team viewer/Whatsapp/Email/Phone/Skype.
We can also provide on site service if you need.
Our professional engineers will support you in time.
If you want to know more, please feel free to contact us, we will reply you asap.

---
