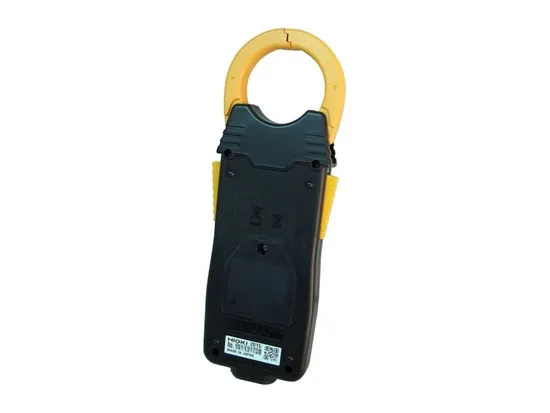

Hioki 3280-10f 3280-70f Clamp Type Multimeter Imported in Original Package

Product Description

Product Parameters
Clamp On Hi Tester
1000 A, Average RMS RespondingClamp aperture: 33 mm (1.30 in) diameterLightweight 100 g (3.5 oz), and Slim 16 mm (0.63 in)Independent-opening double-lever designSlim body design, allows easy clamping even for narrow conductorsNo metal (iron core) exposure, ensuring enhanced safety3 Year Warranty DescriptionHioki 3280-10F - Clamp On Hi Tester Clamp aperture: 33 mm (1.30 in) diameterLightweight 100 g (3.5 oz), and Slim 16 mm (0.63 in)Independent-opening double-lever designSlim body design, allows easy clamping even for narrow conductorsNo metal (iron core) exposure, ensuring enhanced safetyMeasure 1000Amp AC Mean (Average) Current Hioki gauranteed quality. Three year warranty. Slim body design, allows easy clamping even for narrow conductors.
42A to 1000A AC Current Clamp Meters with Double Opening Jaw and Slim Profie to Get into the Narrowest Spaces
Hioki clamp on meters are best-in-class measuring devices incorporating Hioki's expertise in current sensing technology. The 3280-10 and 3280-20 are our most popular clamp on meters, featuring a thin and compact clamp core that lets you get into the tightest spots.
True RMS vs. MEAN Value
Two ways to convert alternating current to RMS are "true RMS response" and "average rectified RMS response" (averaging). Both display the same value for a sine wave, but can display very different values for distorted waveform.
In The BoxL9208 Test LeadsInstruction manual9398 Carrying CaseManuals/GuidesManualsHioki 3280-10 Clamp On HiTester Instruction ManualHioki A Complete HIOKI Digital & Analog Clamp Tester Selection GuideSpec SheetsHioki Clamp On HiTester Series - Data SheetOtherHioki Declaration of ConformityManufacturer Specs

Specifications
AC Current range	42.00 to 1000 A AC, 3 ranges (±1.5 % rdg. ±5 dgt. at 50 or 60Hz), Average rectifier effective value
AC Voltage range	4.200 to 600 V AC, 4 ranges (±2.3 % rdg. ±8 dgt. at 50 or 60Hz), Average rectifier effective value
DC Voltage range	420.0 mV to 600 V DC, 5 ranges (±1.3 % rdg. ±4 dgt.)
Other functions	Resistance: 420.0 to 42.00 M-ohm, 6 ranges, Accuracy: ±2.0 % rdg. ±4 dgt. (at 420 to 420 k-ohm range), Continuity: 420.0 ohm (Buzzer sounds at approx. 50 ohm or less)
Frequency characteristics	(at AC current / voltage) AC current: 50/60 Hz, AC voltage: 50 to 500 Hz
Display section	Digital / LCD, maximum 4199 dgt.
Sampling rate	2.5 times/sec or 1 times/3 sec
Max. circuit voltage	600 V AC rms (insulated wire)
Power supply	CR2032 (3 VDC) × 1, Continuous use 150 hours
Core jaw diameter	Ø 33 mm(1.30 in)
Dimensions	57 mm (2.24 in) W × 175 mm (6.89 in) H × 16 mm (0.63 in) D, 100 g (22.44 oz)
Accessories Included	TEST LEAD 9208 (1), CARRYING CASE 9398 (1)
General Specifications
LCD panel	4199 maximum display value
Out of range indication	OF or -OF
Battery low warning	(during which time accuracy cannot be guaranteed).
Data hold indication
Zero suppression	5 count or less (current measurement only)
Display update interval	FAST: 400 ms ±25 ms, SLOW: 3.2 s ±0.2 s
Range switching	Auto range / Manual range
Withstand voltage	Between case and circuit: AC4290 Vrms for 1 min. Between clamp sensor and case: AC7060 Vrms for 1 min. Between clamp sensor and circuit: AC5400 Vrms for 1 min.
Location of use	Altitude up to 2000 m (6562 feet), indoors, Pollution Degree 2
Maximum conductor diameter for measurement	φ33 mm (1.30") or less
Operating temperature and humidity	0 to 40°C (32 to 104°F), 80%RH max (no condensation)
Storage temperature	-10 to 50°C (14 to 122°F) (no condensation)
Temperature characteristics	In 0 to 40°C (32 to 104°F) range: 0.1 x Measurement accuracy / (°C)
Power supply	Lithium battery: CR2032 x 1 (Rated supply voltage 3 V DC)
Maximum rated power	15 mVA
Continuous operating time	Approx. 150 hours (standard), Approx. 80 hours min. (in AC current measurement mode, continuous, no load)
Dimensions and mass	Approx. 57W x 175H x 16D mm, approx. 100 g (Approx. 2.24"W x 6.89"H x 0.63"D, approx. 3.5 oz.)
Drop proof	One meter to concrete
Accessories	Instruction manual, 9398 Carrying Case, L9208 Test Leads
Maximum rated voltage to earth	Current measurement section: Measurement category CAT III 600 V (anticipated transient overvoltage 6000 V) Voltage measurement section: Measurement Category CAT III 300 V, CAT II 600 V (anticipated transient overvoltage 4000 V)
Applicable standards	Safety :EN61010 EMC :EN61326

Tech SpecsClamp Meters/Clamp Meters TemplateTrue RMSMaximum Current ACMaximum Voltage ACMaximum Voltage DCResistanceTest Equipment General AttributesProduct HeightProduct LengthProduct WidthHTS/Schedule B NumberECCN NumberCountry of OriginShipping HeightShipping LengthShipping Width

No

1000 A

600 V

600 V

Yes

1.75 IN

9.00 IN

3.50 IN

9030310000

3A992

Japan

1.75 IN

9.00 IN

3.50 IN
