Hybird Solar Inverter Deye Growatt Brand for storage System

Product Description

Product Description

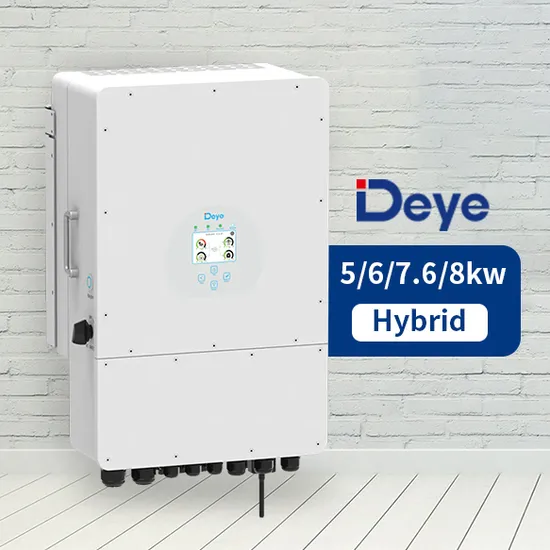

Deye Hybrid Inverter 5000w on/off-Grid Inverter, 5kw Storage Inverter(SUN-5K-SG01/03LP1-EU)
SUN-5k-SG01LP1
1. Colorful touch LCD, IP65 protection degree
2. 6 time periods for battery charging/discharging
3. Max. charging/discharging current of 120A
4. Frequency droop control, Max.16pcs parallel
5. DC couple and AC couple to retrofit existing solar system 6. Support storing energy from diesel generator
7. 48V low voltage battery, safe and reliable
8. Unique Smart Load application and Grid peak shaving function
9. 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works wellProduct Parameters
SUN 3.6/5K-SG,hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3.6/5K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It equipped with RS485/CAN port for battery communication. Application

Model	SUN-3.6K-SG01LP1	SUN-5K-SG01LP1
Battery Input Data
Battery Type	Lead-acid or Lithium-iron
Battery Voltage Range (V)	40-60V
Max.Charging Current (A)	90A	120A
Max.Discharging Current (A)	90A	120A
Charging Curve	3 Stages/Equalization
External Temperature Sensor	Optional
PV Strings Input Data
Max.DC Input Power (W)	4680W	6500W
PV Input Voltage (V)	370V(100V~500V)
MPPT Range (V)	125-425V
Full Load DC Voltage Range	240-425V
Start-up Voltage (V)	125V
PV Input Current (A)	11A+11A
No.of MPPT Trackers	2
No.of Strings Per MPPT Tracker	1+1
AC Output Data
Rated AC Output and UPS Power (W)	3600W	5000W
Max AC Output Power (W)	3960W	5500W
Peak Power(off grid)	2 times of rated power,10S
AC Output Rated Current(A)	15.7A	21.7A
Max.AC Current(A)	18A	25A
Max Continuous AC Passthrough(A)	35A
Output Frequency and Voltage	50/60Hz; 220/230/240Vac(single phase)
Grid Type	Single Phase
Current Harmonic Distortion	THD<3%(Linear load<1.5%)
Efficiency
Max.Efficiency	97.60%
Euro Efficiency	96.50%
MPPT Efficiency	99.90%

Application
Installation Instructions
SUN-5K-SG01/03LP1-EU10KW, Germany
3.6-5KW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage BatterySUN-5K-SG01/03LP1-EU10KW, Kenya
3.6-5KW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage BatterySUN-5K-SG01/03LP1-EU10KW, Zimbabwe
3.6-5KW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage BatteryPackaging
FAQ
Q1: Can the product be shipped to my area?
A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you
provide the region.
Q2: What about the lead time?
A2: 10 days for<200kW requirements, we need to negotiate if your needs ≥200kW.
Q3: How can I make payment?
A3:100% TT or maximum we can accept 30% TT in advance and 70% TT upon goods ready before shipment
Q4: What is the mode of transport?
A4: International section is generally sea transport, after entry we will use multimodal transport of rail, barge.
Q5: what's the warranty?
A5:12 years enhanced product warranty on materials and workmanship, 25 years linear power output warranty. More detail please
refer to our limited warranty statement.

---
