Haibo D Series Hand Control Electric Trolling Motor D54

Product Description

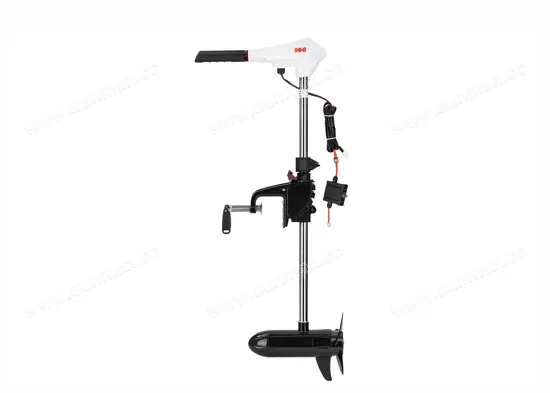

Haibo D Series Hand Control Electric Trolling Motor D54
Product Description
•LED power indicator .•Various power option 34Ib to 80Ib thrust .•Large thrust, low noise and high efficiency. •Forward five, backward three, total eight speed relay .•The whole system is standard with anti-corrosion anode protection device. Haibo D54 boat engine is a reliable and inexpensive engine for fishing and recreation. It is mounted on hull and PVC boats, provides flexible speed management and works steadily even at the lowest revs. Thanks to this, the electric motor for the boat is popular with trolling enthusiasts.
The Haibo D54 has a high-quality stainless steel rack and an anti-corrosion plate is installed on the engine body to protect as much as possible. So you can buy a Haibo D54 boat electric motor for use not only in fresh water, but also in seawater.
The engine is powered by a gel, AGM or lithium-ion traction battery. To comfortably control the level of its charge, a digital voltage indicator is displayed on the upper surface of the head block.
The Haibo D54 is very quiet. The noise from it is much less than from gasoline engines, so you can fully enjoy the silence or sounds of nature.
Buy the Haibo D54 boat electric motor. With it, your fishing and rest will become much more comfortable.

Item	Thrust(Ibs)	Voltage(v)	Current(A)	Shaft Material	Shaft Length(cm)
D34	34	12	32	AL	78.7
D44	44	12	42	S.S	91
D54	54	12	50	S.S	91
D65	65	12	42	S.S	91
D80	80	24	48	S.S	91

Product Features

	High efficiency motor unit *National electric motor patent manufacturing technology *High performance anti winding propeller, easy to deal with water obstacles *Made of high-strength plastic		Telescopic handle *The handle can be retracted and operated freely
	LED power display *Built in LED voltage digital display mode, providing accurate power reference at any time		Finger pressure suspension system *Open-close type depth adjustment *Finger pressure suspension angle adjustment
	Breaker protector CB50S *When the propeller is locked or overloaded, the power supply of the product will be cut of to protect the propeller from damage. Just reset the propeller gear and eliminate relevant faults, then press the reset button Of the product to resume use		Anticorrosive anode protection *It adopts martyr Martell anode block of Germany, which has excellent corrosion resistance and greatly extends the service life of the motor

Product Parameters

Model	D54
Power (W)	624
Thrust (lbs)	54
Thrust (kg)	24.5
Rated Voltage (V)	12
Max. Current (A)	50
Type of Electric Motor	Brush
Propeller Max. Speed at Full Power (rpm)	1700
Management	Handle
Type of Handle	Telescopic
Shifting	5 forwards and 3 backwards
How Information is displayed	Digital
Information Displayed	Voltage
GPS	No.
Number of Propeller Blades	3
Noise Level (dB)	52
Max. Boat Weight (kg)	500
Max. Length of Boat (m)	6.4
Use Environment	Fresh Water, Salt Water
Color	White
Total Engine Height (cm)	117
Shaft Length (cm)	91
Weight (kg)	11
Recommended Battery Capacity (AH)	100
Package Size (cm)	120*54*17
Warranty Period (Months)	12

---
