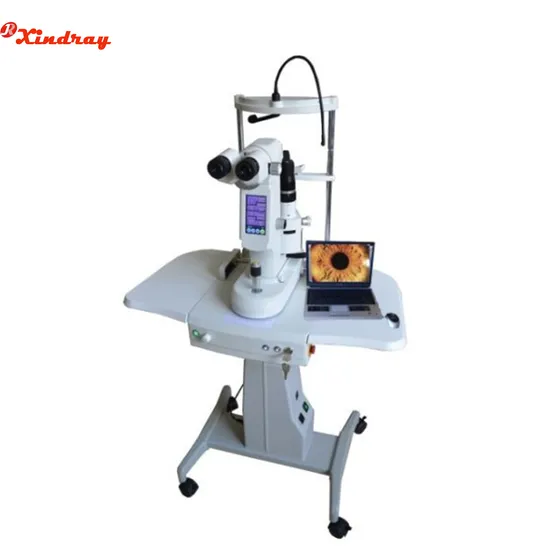

High Definition Integrated System. Professional Software. Joystick Handle. *This Product Must Be Connected with Computer. Optical System: Slm-2 Based Digital System: 3.0m Max. Pixels Resolution Image Capture Card Professional Image Software Computer Requirement: Compatible PC/Laptop Windows 2000/XP Photo Jet Printer It based on our standard slit lamp SLM-2ER (Galielo type, 5 Mags) and adopts SLR Nikon D 5100 digital camera with 16.2 Mag pixel resolution, which allows to take very detailed part the patient eye. -Its professional software system includes high definition video function (MOV format), doctors can record, play, capture image from the video via software directly any time you want during playing. -The SLR digital Camera adopts AC power to supply the power. It does not need bettary. This function is very convenient for doctors for using. Specifications:
| Type | Parallel Galilean |
| Eyepiece | 12.5X |
| Total Magnification | 6X, 10X, 16X, 25X, 40X |
| Diameter of Visual Field | Φ 37, Φ 23, Φ 14, Φ 8.7, Φ 5.7mm |
| Diopter Adjustment | +5D--5D |
| Slit Width | 0mm-14mmcontinuously adjustable |
| Slit Height | 1mm-14mmcontinuously adjustable |
| Aperture Diameter | Φ 14, Φ 10, Φ 5, Φ 3, Φ 2, Φ 1, Φ 0.2mm |
| Slit Angle | 0° -180° |
| Illumination Tilting | 0° , 5° , 10° , 15° , 20° |
| Filter | Heat absorption, grey, redfree(green), cobalt blue |
| Input Voltage | 110V/220V 60/50Hz |
| Input Power | 60VA |
| Illumination Bulb | 12V/50W halogen bulb,led lamp optional |
| Fixation | Red LED |
