Unshielded Shielded Fire Resistant Cable and Alarm Wire Cable

Product Description

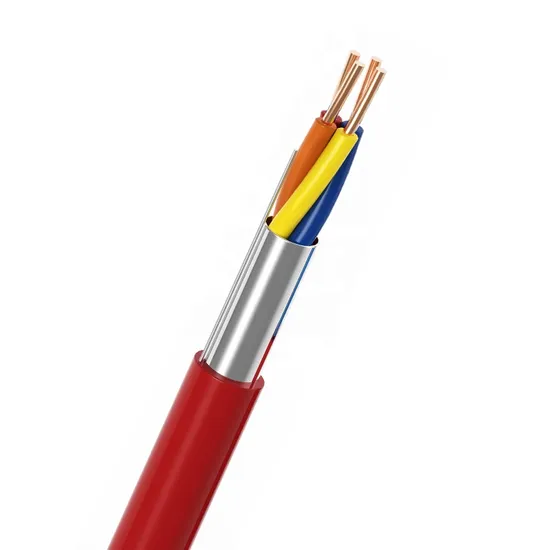

Unshielded shielded fire resistant cable and alarm wire cable
Alarm Cable/Control Cable
- Conductor Material: CU/CCA
- Insulation Material: PVC
- Insulation Diameter: 1mm/1.5mm
- Drian Wire Material: N/A
- Jacket Material: PVC
- Signal Shield: Al/Polyester Foil; Coverage>100%.
- Double Fully Shield: Al/Polyester Foil + Tinned Copper Braid
Fire Cable/Fire Alarm Cable
- Conductor Material: CU
- Insulation Material: PVC
- Insulation Diameter: 1.8mm/2.15mm/2.40mm/2.80mm
- Drian Wire Material: 0.5mm CU
- Jacket Material: PVC
- Signal Shield: Al/Polyester Foil; Coverage>100%
Alarm Cable/Control Cable

Cable Size	Specification	Overall Diameter
2x0.22mm²	2x7/0.20	3.0mm
4x0.22mm²	4x7/0.20	3.5mm
6x0.22mm²	6x7/0.20	4.1mm
8x0.22mm²	8x7/0.20	4.5mm
10x0.22mm²	10x7/0.20	5.2mm
12x0.22mm²	12x7/0.20	5.6mm
14x0.22mm²	14x7/0.20	5.8mm
20x0.22mm²	20x7/0.20	6.8mm
2x0.50mm²	2x16/0.20	4.5mm
4x0.50mm²	4x16/0.20	5.2mm
6x0.50mm²	6x16/0.20	6.0mm
8x0.50mm²	8x16/0.20	6.8mm
10x0.50mm²	10x16/0.20	7.6mm
12x0.50mm²	12x16/0.20	8.0mm

Fire Cable/Fire Alarm Cable

Cable Size	Specification	Overall Diameter
2x0.5mm²	2x0.8mm	4.80mm
2x2x0.5mm²	4x0.8mm	6.00mm
2x1.0mm²	2x1.15mm	5.30mm
2x2x1.0mm²	4x1.15mm	6.60mm
2x1.5mm²	2x1.40mm	5.90mm
2x2x1.5mm²	4x1.40mm	7.20mm
2x2.5mm²	2x1.80mm	6.80mm
2x2x2.5mm²	4x1.80mm	8.00mm

Packing:
1)Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll.
2) Inner packing:Roll, Wooden reel, plastic reel, and paper reel.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

---
