Heavy-Duty 3t Mechanical Steel Jack with Folding Handle for Lifting Equipment China Factory Price

Product Description

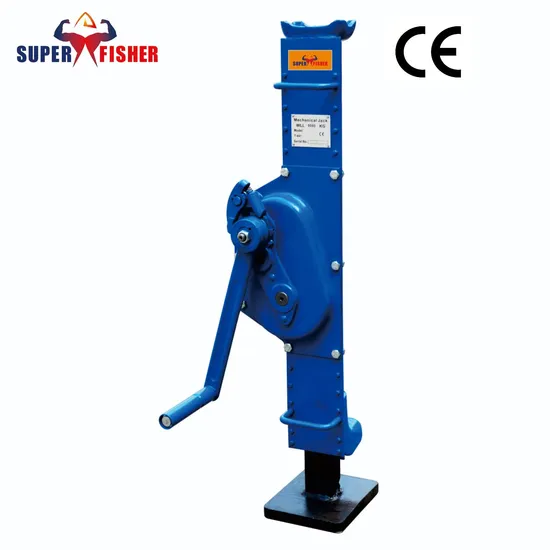

Mechanical Steel Jack With Folding Handle
WLL:1500 - 25000 KGS
>The mechanical steel jack is designed by mechanical transmission principle.
>lt's one of the best lift tools used in repairing and supporting, etc.
>The lifting or lowering speed is controllable.
>Moreover, it overcomes the shortcoming of the common hydraulic jacks whose lowering height and speed is out of control when oil leaking.
>The top-quality all steel structure makes it safe and durable.
>The compact design with collapsible lever offers easy operation and simple maintenance.
>lt has two applicablesupports stands.The lifting range is much higher.
*All jacks are tested with 25% overload
*Equipped with fixed claw
*Folding handle
Details:
Specification:

Rated Capacity / Ton	T	MJ-1.5	MJ-3	MJ-5	MJ-10	MJ-16	MJ-20	MJ-25
Test Load / KN	KN	18.4	36.8	61.3	122.5	196	245	306
Hand shake to lift full load / N	N	140	196	235	431	580	650	750
Dimensions / MM	A	77	83	105	120	153	153	153
	B	100	130	140	140	150	150	198
	C	605-905	720-1075	735-1065	795-1155	790-1105	840-1155	950-1360
	D	55-355	55-410	60-390	70-430	90-405	90-405	110-520
	E	55	60	70	80	85	85	85
	F	40	45	68	73	90	90	90
	G	110	138	175	175	182	182	230
	H	225	285	285	330	360	360	360
	K	121	200	190	252	275	275	388
	R	119	140	155	185	210	224	200
	S	185	230	220	220	202	202	205
	T	126	126	126	250	250	250	250
Net weight / KG	kg	10.7	21.3	27	47	64.5	72	93

---
