Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Table Size (mm)
Customized
Number of Axis
From 3-5 Axis
Type
Vertical Machining Center
Table Travel (Z) (mm)
Customized
Positioning Accuracy (mm)
0.005
Repeatability (X/Y/Z) (mm)
0.003
Range of Spindle Speed(r.p.m)
40 - 8000 r.p.m
Feed Speed(mm/Min)
40 - 8000 mm/Min
Tool Magazine Capacity
24
CNC Control System
Gsc Faucnc
X/Y/Z Axis Rapid Feed
Customized
Worktable Type T Groove
5-18-90
Spindle Motor Power(Kw)
7.5kw
Transport Package
Standard
Production Capacity
50000 Pieces/Week
Packaging & Delivery
Package Size
2200.00cm * 1200.00cm * 1200.00cm
Package Gross Weight
2000.000kg
Product Description

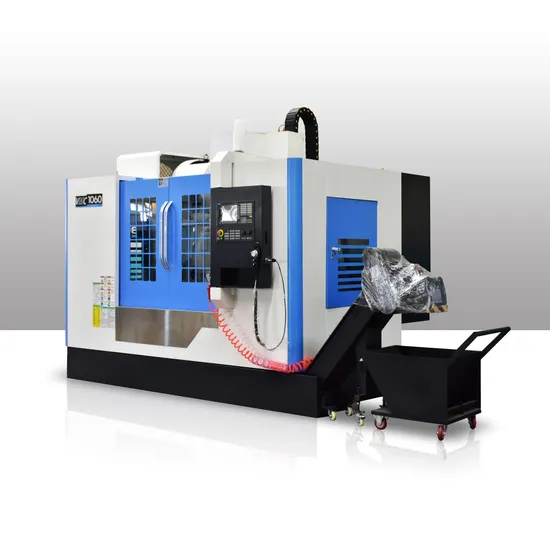

Metal 3 4 5 Axis CNC Gantry Precision Vertical Lathe Milling Turning Drilling Tapping Machining Center VMC Machine Tools
VMC Series Vertical Machining Center Features:
High-precision, high-rigidity and high-precision spindle;
Servo motor drive;
Belt-type spindle has strong rigidity and reliability
High-speed, high-efficiency, high-precision, direct-connected spindle, low noise and low vibration;
Fully meet the needs of users. VMC series CNC vertical machining center is x, y and Z axis servo control semi closed loop, with compact and reasonable structure and overall dimensions, and the main shaft is driven by servo motor.
Specifications
| VMC650
| VMC850
| VMC855
| VMC1060
| VMC1270
|
X axis
| 650mm
| 800mm
| 800mm
| 1000mm
| 1200mm
|
Y axis
| 400mm
| 500mm
| 550mm
| 600mm
| 700mm
|
Z axis
| 500mm
| 500mm
| 550mm
| 600mm
| 700mm
|
Spindle end face to workbench
| 100-600mm
| 150-650mm
| 150-650mm
| 100-700mm
| 130-830mm
|
Spindle center to column guide
| 476mm
| 571mm
| 571mm
| 667mm
| 767mm
|
X-axis fast moving
| 32(48)m/min
| 24(48)m/min
| 24(48)m/min
| 24m/min
| 24m/min
|
Y axis fast moving
| 32(48)m/min
| 24(48)m/min
| 24(48)m/min
| 24m/min
| 24m/min
|
Z axis fast moving
| 24(48)m/min
| 24(48)m/min
| 24(48)m/min
| 24m/min
| 24m/min
|
Cutting feed
| 1-10m/min
| 1-10m/min
| 1-10m/min
| 1-10m/min
| 1-10m/min
|
Recommended three-axis servomotor torque
| 10N.m
| 12N.m
| 12N.m
| 20 N.m
| 25 N.m
|
Workbench area
| 800×400mm
| 1000×500mm
| 1000×550mm
| 1200×600mm
| 1300×700mm
|
weight capacity
| 400Kg
| 500Kg
| 500Kg
| 600Kg
| 700Kg
|
Work surface height from the ground
| 900mm
| 900mm
| 900mm
| 1000mm
| 1000mm
|
T-slot
| 3×18×125mm
| 5×18×90mm
| 5×18×90mm
| 5×18×100mm
| 5×18×115mm
|
Rotating speed
| 8000 rpm
| 8000rpm
| 8000rpm
| 8000 rpm
| 8000 rpm
|
Spindle taper
| BT40
| BT40
| BT40
| BT40
| BT40
|
Recommended main motor power
| 5.5KW
| 7.5KW
| 7.5KW
| 7.5KW
| 11KW
|
Positioning accuracy (JIS standard)
| ±0.005/300mm
| ±0.005/300mm
| ±0.005/300mm
| ±0.005/300mm
| ±0.005/300mm
|
Repeat positioning accuracy (JIS standard)
| ±0.003mm
| ±0.003mm
| ±0.003mm
| ±0.003mm
| ±0.003mm
|
Dimensions
| 2000×1500×1950mm
| 2300×1850×1950mm
| 2300×1850×1950mm
| 2800×2300×2500mm
| 3200×2400×2700mm
|
>>
