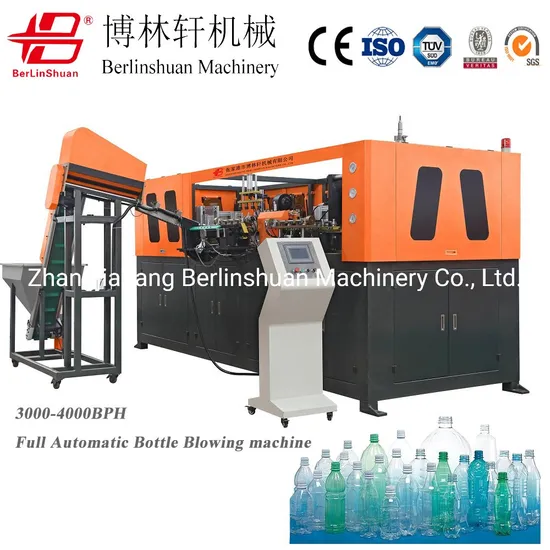

3000-4000bph Automatic Making Bottle Moulding Machine

Product Description

Full Automatic Blowing Bottle Machine
Flow chart.
High Pressure Air Compressor -- Air Tank -- Air Fiter -- Air Dryer -- Low Pressure Air Compressor -- Air Fiter -- Full Automatic
Blow Moulding Machine -- Mould -- Water Chiller

Bottle type specification	Cavity	4
	Theory output (PCS/HR)	3000-4000
	Max. volume (L)	2L
	Bottle mouth maximum overall diameter (mm)	28-38mm
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
Power specifications	Light tube quantity	32pcs
	Light tube power	1.25kw
	Maximum heating power	40kw
	All electric machine installation	43kw
	Actual consumption	21.5kw
Air pressure specification	Work pressure	7-9kg/cm2
	Low-pressure gas consumption	1600Ltr/min
	Blow bottle pressure	25-35kg/cm2
	Higher -pressure gas consumption	3000 Ltr/min
Frozen water specification	Work pressure	5-6 kg/cm2
	Temperature range	10°C
	Consumption	8000kcal/hr
	Frozen water flow	88Ltr/min
Machine specification	Size of the machine	4.5x1.6x1.9 (m)
	Weight of the machine	3.5ton

Main features.
1 - Stable performance with advanced PLC.
2 - Conveying preforms automatically with conveyor.
3 - No contamination and low noise with the air cylinder to drive the action not the oil pump.
4 - Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into
three parts in the air pressure diagram of the machine.
5 - Strong clamping force with high pressure and double crank links to lock the mold.

---
