Dialead Arix Segmented Core Drill Bit for Reinforced Concrete

Product Description

Product Description Dialead is the top stone machine and stone tools manufacturer in China with over 20 years experience.

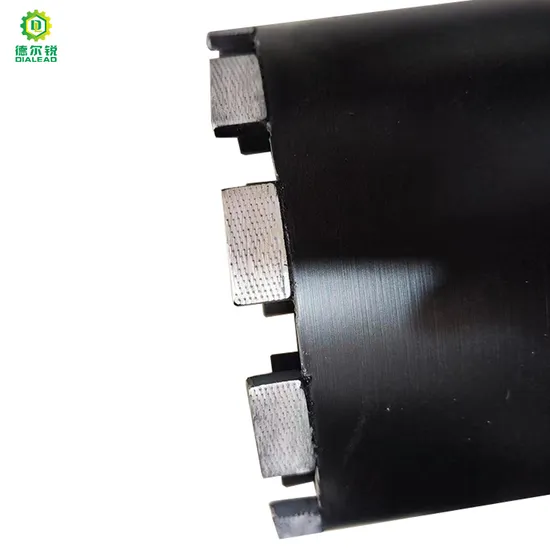

Dialead Arix Segmented Core Drill Bit for Reinforced Concrete is mainly used on drilling machine for cutting concrete and reinforced concrete.
Features

1.fast cutting with longlife.
2.excellent performance and sharpness.
3.good quality for smooth cut.
4.strict product quality inspection processes

Product Parameters

Reinforced concrete core bits
Specification	segment size	Effective Length	Overall Length	Segment Number	Joint	Optional segment
16	3x10	400	475	1	1-1/4UNC	shallow slot crown segment
18	3x10	400	475	1
20	3x10	400	475	1
24	15x3x10	400	475	3
25	15x3x10	400	475	3		Normal segment
28	15x3x10	400	475	3
32	16x3x10	400	475	4		Sharp corners segment
36	16x3x10	400	475	4		groove turbo segment
38	16x3x10	400	475	5
40	16x3x10	400	475	5		Sharp corners groove turbosegment
42	16x3x10	400	475	5
47	24x3.5x10	400	475	4
51	24x3.5x10	400	475	5
63	24x3.5x10	400	475	6
68	24x3.5x10	400	475	6
78	24x3.5x10	400	475	7
82	24x3.5x10	400	475	7
92	24x3.5x10	400	475	8
112	24x4.0x10	400	475	9
122	24x4.0x10	400	475	10
127	24x4.0x10	400	475	11
132	24x4.0x10	400	475	11
142	24x4.0x10	400	475	12
152	24x4.5x10	400	475	12
162	24x4.5x10	400	475	12
172	24x4.5x10	400	475	12
182	24x4.5x10	400	475	13
202	24x4.5x10	400	475	15
212	24x4.5x10	400	475	16
225	24x4.5x10	400	475	16
250	24x4.5x10	400	475	16
300	24x4.5x10	400	475	17
350	24x5x10	400	475	20
