Acrel Three Phase Energy Meter Dtsd1352-C with RS485 Compatible with Solar Inverter

Product Description

Acrel DTSD1352 Energy Meter UL Approved

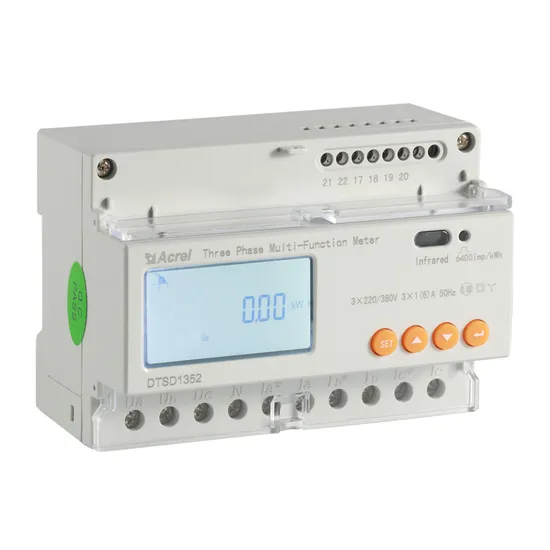

DTSD1352 is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. lt features the high precision, small size and simple installation. lt integrates the measurement of all electrical parameters with the comprehensive electricity metering and management provides various data on previous 12 months, checks the 31st harmonic content and the total harmonic content,realizes the remote communication and the remote control with switching input and relay output and boasts the alarm output. It is fittedwith RS485 communication port and adapted to MODBUS-RTU. DTSD1352 can be used in all kinds of control systems, SCADA systems and energy management systems. All meters meet the related technical requirements of electronic power meter in the lEC62053-21,EC62053-22 standards.
Measurement: 3-phase kWh (0.5S), Active Power, Reactive Power, Current, Voltage, Harmonic and etc
Voltage Rating: 3x220/380V, 3x57.7/100V (3P4W); 3x380V, 3x100V (3P3W)
Current Rating: 3x10(80)A; 3x1(6)A
Frequency: 45~65Hz
Communication: RS485 (MODBUS-RTU) and Infrared
Multi-rate: Spike, Peak, Valley and Flat kWh
Extra Function: Cable Temperature Measurement and DO/DI
Display: LCD (8 digits)
Dimension: 127*88*70mm (L*W*H)
Wiring: 3-phase 4wire; 3-phase 3-wire
Installation: 35mm DIN Rail
Standard&Certificate: IEC; CE; EAC

Product Description
Product Parameters
Characteristic

Diverse Electricity Parameters Measurement Harmonic (2~31st voltage&current)---Optional F (Frequency) U (3-phase Voltage) I (3-phase Current) kWh (3-phase positive Kilowatt-hours) kVarh (Kilovar-hours) P (Power) Q (Reactive power) S (Apparent power) PF (Power factor)
Multi-rate/Flexible Tariff 4 Time zone 4 Tariff rate (Spike, Peak, Flat, Valley) 2 Time period list 14 Time period by day Data Frozen (last 48 months or last 90 days) Max demand and occurrence time
2 Channel RS485 Communication Protocol: MODBUS-RTU 1 channel RS485 or 2 channel RS485 both optional
3-channel Temperature Measuring Thermistor: NTC temperature sensor Measuring Range: -40ºC~+125ºC

DO/DI Switch 1 channel DO 1 channel DI
HMI for Parameters Setting Code Protocol Address Baud rate Parity All Display
Infrared Communication for Remote Meter Reading Built-in infrared communication Easy Remote Meter Reading Optional Connection Methods Direct Connection with Meter First Connection via CT.
Optional Connection Methods Direct Connection with Meter First Connection via CT.

Dimension and Installation

Wiring
Site Picture

Typical Connection
