Beryllium Copper C17200 Price Round Bar Rod Strips Plate

Product Description

Product Description For C17200 Beryllium copper, we can supply as below:
C17200 Beryllium copper rod, C17200 Beryllium copper bar
Diameter (unit: mm): 1.0, 2.0, 3.0, 4.0, 4.5, 5.0, 6.0, 6.5, 7.0, 8, 10, 12, 14, 15, 16, 18, 20, 25, 28, 30, 35, 40, , 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 115, 120, 125, 130, 140, 150, 160, 170, 180, 190, 200,
Length: 1000-2000mm(can produce as customers' required dimeter)
C17200 Beryllium copper strips, C17200 Beryllium copper coil
Thickness (unit: mm): 0.05, 0.08, 0.1, 0.12, 0.15, 0.2, 0.25, 0.3, 0.35, 0.4, 0.5, 0.6, 0.7, 0.8, 1.0, 1.2(can produce as customers' required dimeter)
Width: 200mm(can produce as customers' required dimeter)
C17200 Beryllium copper wire
Diameter (unit: mm): 0.1, 0.12, 0.15, 0.18, 0.2, 0.25, 0.3, 0.35, 0.4, 0.5, 0.6, 0.65, 0.7, 0.75, 0.8, 0.85, 0.9, 0.95, 1.0(can produce as customers' required dimeter)
C17200 Beryllium copper sheet, C17200 Beryllium copper plate
Thickness (unit: mm): 1.0, 1.5, 1.6, 2.0, 3.0, 4.0, 5.0, 6.0, 8.0, 10, 12, 15, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 105, 110, 115, 120, 130, 140, 150mm
Width*length(unit: mm): 400*600(can produce as customers' required dimeter)
C17200 Beryllium copper tube
Feature of beryllium copper alloy
Beryllium copper alloy combines excellent mechanical properties, physical properties and chemical properties. After heat treatment (solid solution treatment and aging treatment), it has high strength limit, elastic limit, yield limit and fatigue resistance limit comparable to special steel. At the same time, it also has high electrical conductivity, thermal conductivity, high hardness, corrosion resistance, wear resistance, good casting performance, non-magnetic and non-sparking properties on impact, and is widely used in mold manufacturing, machinery, electronics and other industries. No blisters, pores, balanced hardness, dense structure, high strength, good thermal conductivity, good electrical conductivity, corrosion resistance, excellent wear resistance, good processing performance, stable performance under high pressure conditions, non-magnetic, Excellent polishing performance and good anti-adhesive performance.
C17200 high strength beryllium copper characteristics:
1. High thermal conductivity 2-3 times higher than steel, excellent cooling performance, can shorten the molding cycle time, good heat dissipation effect, effectively reduce product deformation and shrinkage, control shrinkage after molding, and improve dimensional stability sex, improve productivity;
2. High corrosion resistance, especially suitable for molds of polyvinyl chloride (PVC) products;
3. High hardness, wear resistance and toughness. Used as an insert in conjunction with mold steel and aluminum, the mold can maximize its performance and extend the service life of the mold;
4. Excellent polishing performance, can produce mirror surfaces with high surface precision and patterns with complex shapes.
5. It has good anti-adhesion performance, is easy to weld with other metals, is easy to machine and does not require additional heat treatment.
Application of C17200 beryllium copper alloy:
Electronic and electrical industry: Due to its high electrical and thermal conductivity, C17200 alloy is commonly used in electrical connectors, sockets, plugs, switches, spring contacts and other electronic and electrical components.
Automotive Industry: This alloy is widely used in the automotive industry, such as brake components, contactors, electrical connectors, sensor contacts, etc. due to its wear resistance and high strength.
Aerospace field: C17200 alloy is widely used in aircraft components, navigation systems, engine parts and connectors in the aerospace field.
Tool and Mold Manufacturing: Due to its high strength, hardness and wear resistance, this alloy is suitable for manufacturing tools, molds and mold parts such as mold cores, cooling guides, etc.
Chemical industry: The corrosion resistance of C17200 alloy makes it suitable for applications such as corrosive media handling, valves and pipe connections in the chemical industry.

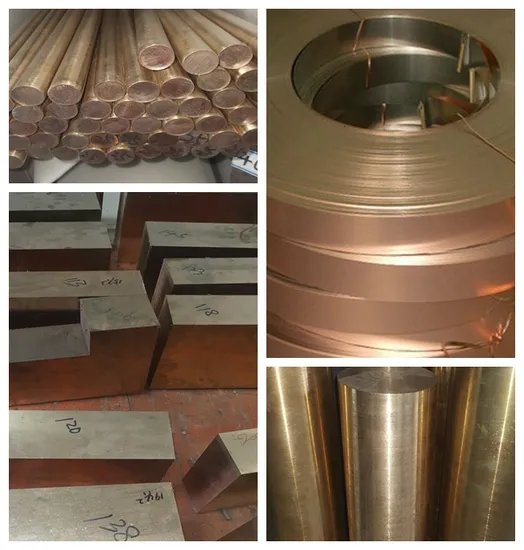

Detailed Photos
Product Parameters
Same grade with C17200 beryllium copper alloy in different countries
Other name: Alloy 25, CuBe2
China: QBe2, QBe1.9
America (US): C17200
Germany: QBe2, QBe1.7
Japan: C1720
Russia: BPB2, BPBHT1.9
Parameter:

Grade	Be	Co	Ni	Co+Ni	Ti	Pb
C17200	1.8-2.0	/	/	>0.2	<0.6	/
C17300	1.8-2.0	/	/	>0.2	<0.6	0.6
C17410	0.15-0.5	0.35-0.6	/	/	/	/
C17500	0.4-0.7	2.4-2.7	/	/	/	/
C17510	0.2-0.6		1.4-2.2	/	/	/

Company Profile
DL Industry Group is focused on the beryllium inorganic substance, metal and alloy including the beryllium metal, beryllium oxide, beryllium fluoride, aluminum beryllium master alloy, beryllium copper master alloy, beryllium copper alloy(C17000, C17200, C17300, C17410, C17500, C17510, JK520, JK38, etc).

---
