High Speed Maxi Roll Jumbo Roll Paper Band Saw Cutting Machine

Product Description

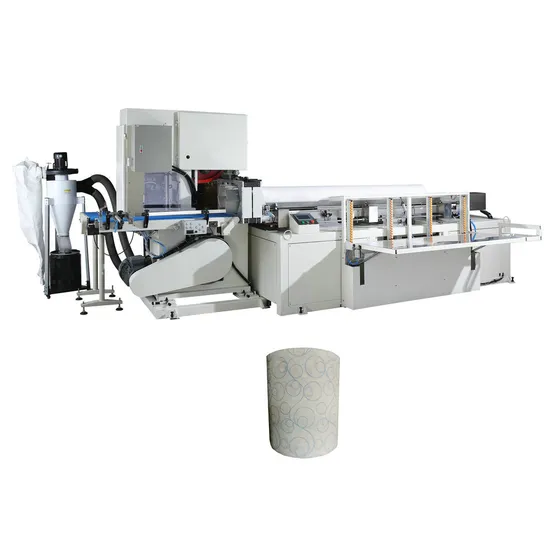

XY-AI-500 High Speed Maxi Roll Jumbo Roll Paper Band Saw Cutting Machine
Features:
1.The main motor using the inverter independent drive.
2.For one set of machine, the cutting diameter of paper roll is adjustable as 100~280mm.
3.The equipment adopts automatic sharpening system, grinding wheel can be automatic feeding adjustment according to the blade loss.
4.The grinding system is equipped with an independent dust removal device to ensure the working environment.
5.The band saw adopts hydraulic tension system to ensure the tension of band saw.
6.It will be automatic stop and alarm when the knife is broken.
7.High precision servo system is used to ensure the quality of finished products.
8.According to the raw materials and the length of finished products, the number of finished products can be calculated automatically.
9.The device stops working and prompts the interface when the input data is wrong.
10.Using band saw for cutting and reduces the cost of use of users.
11.The thickness of finished paper core should less 3mm(Suggestion)
Technical data:

Cutting speed	15-30cuts/minute
Cutting channel	single channel
Cutting blade	band saw blade(18,000--20,000 rolls/blade)
Cutting blade size	5180*100*1.05
Log length	<=2200mm or <=2850mm
Tolerance	±2mm
Cutting length	<=300mm
Cutting diameter	150-300mm(Adjustable)
Thickness of paper core	<=3 mm
Power supply	15KW 3 phase 4line 380V 50HZ
Machine weight	2700KG
Overall size of machine	4600*2350*2200mm(2.2m jumbo roll) 5300*2350*2200mm (2.2-2.85m jumbo roll)
Separated size	Main machine: 4600*1700*2200mm(2.2m jumbo roll) Paper storage: 1500*1650*900mm
	Main machine: 5300*1700*2000mm(2.2-3m jumbo roll) Paper storage: 1700*1650*900mm

Detail pictures:

---
