DIN-Rail Unmanaged 1-Port 1000m Fx + 1-Port 1000m Tx Industrial Switch

Product Description

Product Description Fibridge F6-1GT1GX series network industrial switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has a 10/100/1000 mbps Ethernet interface and a 1000 mbps optical port.The device is built-in power module, you can choose 220V AC input or 12V DC input products.The device operates at a temperature of -40ºC~+80ºC Range and a humidity of %10~%90(No condensation).The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet.
Product Features
Support IEEE802.3/802.3u/802.3x/802.3az forward mode;
Meet the requirements of reliable work in harsh electrical environment;
Support Ethernet Port auto-negotiation;
Support flow control;
Industrial &Modular design make the equipment reliable and flexible;
Support overload protection;
Reverse-link protection is supported;
Support optical hot plug;
Level of protection:IP40;
ISO9000 qualified;
Product Passes testing of the Ministry of Public Security;
Product obtains network qualification certificate.

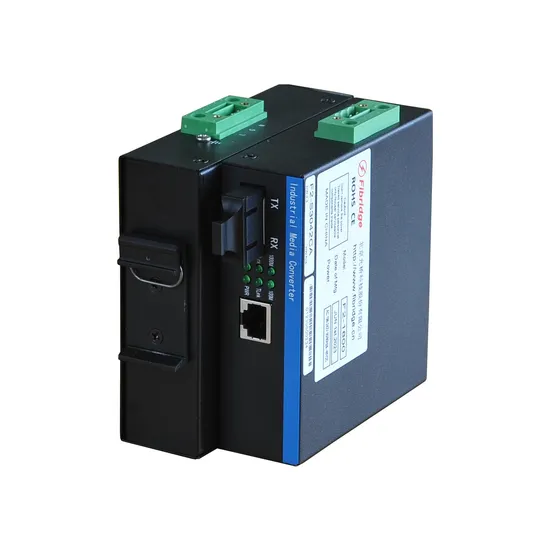

Detailed Photos
Product Parameters

Network Characteristics
Ethernet Protocol	IEEE802.3/802.3u/802.3x store and forward
Flow Control	IEEE802.3x flow control, back pressure flow control
Network Interface	OPT: 1000MBase-FX Single/multimode SC/FC/SFP/1*9
	ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	No
MAC Addresses	1K
Jumbo Frame	No
Cache	NO
Exchange capacity	4Gbps
Packet Forwarding Rate	2.976Mpps
Management	No
Optical Characteristics
Optical Interface	SC/FC/SFP/1*9(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	1310nm/1550nm(850nm)
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature: -40ºC~80ºC
	Storage temperature:-40ºC~85ºC
	Working humidity:10%~90% RH No condensation
	Storage humidity:5%~90% RH No condensation
Power	AC 100-240V/50-60Hz Built-in switching power supply,
	DC12V 1A External power supply
MTBF	≥100000 hours
Mechanical Characteristics
Structural Dimension	125× 108× 32mm
Product Weight	0.5kg

Ordering Information

Model	Ports	Management
F6-1GT1GX	1 1000Base-Fx Optical port SFP/SC 1 1000Base-Tx Ethernet port	N/A

Business Terms Price is FOB Beijing.
3 years warranty.
Price doesn't include SFP module.

About Fibridge Established in 1995; 28 years' experience tells our reliability and high reputation. Full product series, including Industrial Switch, optic telecommunication and Video surveillance series. Products have been exported to more than 110 countries. Successful application of Industrial switch in Railway, Metro, Smart city, Highspeed road, etc. Packaging & Shipping

---
