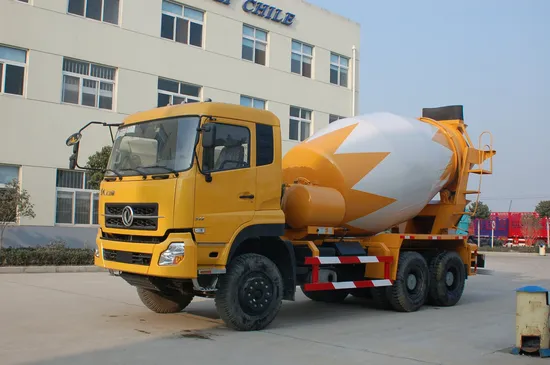

Dongfeng Concrete Mixer Truck with Pump Capacity 5-12 Cubic M3 Concrete Truck Mixer

Product Description

Detailed Photos
Product Description Factory price Dongfeng concrete mixer truck with pump capacity 3-5 cubic m3 concrete truck mixer
Main features of concrete truck mixer
1) Material selection/Material: WISCO Q345 low alloy steel is used to make the mixer tank blades. Shanghai Baosteel B520JJ or QSTE420TM alloy steel can also be selected for customer requirements. 2) Cutting: All the company's sheet cutting, need to be programmed into the CNC plasma flame cutting machine for cutting and cutting. High efficiency and high precision in the blanking process 3) Cylinder production: There are three key process requirements for mixing car body: one is concentricity, the other is strength, the surface and helix angle of the three cylinder blades 1. Concentricity. Our Company's mixing car body adopts the special "mixing car body splicing tooling", which effectively guarantees the concentricity of the cylinder through the clamping position of the mixing cylinder flange, head, raceway and barrel connection.
2. Strength. The strength of the tank is mainly guaranteed by the welding process. The company uses automatic welding machine to carry out the ring seam of the tank, the welding of the longitudinal seam, and the welding consumables use the welding wire of a well-known brand.
3. The barrel of the cylinder. The barrel blades are the more critical components of the mixer truck. There are two symmetrically distributed logarithmic spirals in the body of the mixing car. The blades are designed in different sections of the cylinder to have different helix angles, pitches, elevations and chamfers, and eliminate the blades and the wall. The dead angle of the joint can realize three-dimensional space agitation; the feeding and discharging speed is fast, the concrete homogeneity is good, the yield rate is high, and no material is accumulated. The three main technical performance indicators of feed rate, discharge speed, concrete homogeneity and yield rate exceeded the national regulations. Technical parameter of Foton concrete mixer truck

Concrete mixing capacity		4cbm	10cbm	12cbm	14cbm
Cabin		Standard Cab, left or right hand drive With two bunks, 70° hydraulically tillable to the front
Vehicle Main Dimensions (L x W x H)mm		7200x2500x3660	9600x2500x3950	9850x2525x3950	10500×2496×3980
Wheel base (mm)		3800	3825+1350	4025+1350	1800+3200+1350
Wheel track (front/rear) (mm)		1740/1780	1500/2365	1550/2915	1500/2380
Approach/Departure angle(°)		21/12	19/22	25/13	16/19
Tare Weight		7900	14500	15300	16500
Loading Capacity		19800	26500	25700	33500
Front axles loading capacity		HF1x6500	HF9 1x9000		HF9 2x9000
Rear axles loading capacity		HC11 1X11500	HC16 2X16000
Engine	Brand	Weichai
	Model	WP4.1NQ190E61
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power (HP)	190HP
	Emission standard	Euro 6
Gearbox		HW19710 , 10 forwards & 2 reverse
Clutch		Reinforced diaphragm clutch, diameter 430mm
Steering Gear		ZF 8118,power steering, hydraulic steering with power assistance
Fuel tank (L)		300
Tire		10.00R20 tubeless tire , 10 pieces with one spare total 11 pieces.
Brakes		Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Mixing tank material		16MnQ345
Thickness for end plate		8mm
Thickness for mixer body		6mm
Feeding Speed (m3)		≥3
Discharging Speed (≥m3)		≥2
Leftover Rate		Nearly Zero
Max Rotating Speed (r/min)		14---16
Driving System	Speed Reducer	Italy brand PMP
	Hydraulic Pump	Italy brand PMP
	Hydraulic Motor	Italy brand PMP
Water Tank Capacity (L)		400

About services
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual
and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.Details Images Contact USMiss Ke
Chusheng Vehicle Group Co., Ltd.
Factory: NO.9, Jiliang Avenue, Suizhou Economic Development Zone,Suizhou,Hubei,China
Office: Room 1108, Eurasia Plaza,No.20 Jinyinhu Road, East- west lake District,Wuhan,Hubei,China.
Customized Truck & Trailer Solutions to Meet Your Requirements
Company Profile ABOUT US
CHUSHENG VEHICLE GROUP CO.,LTD. is not only an important national special vehicle manufacturing enterprise, but also an industry leader in independent research and development capabilities of trucks. With deep technical accumulation and innovation capabilities, our company has more than 20 years of professional experience in the field of special vehicles in China and has become a leader in the industry.
Now our team have more than 3,000 employees which includes 450 professional technicians, which is the solid guarantee for our product quality and technological innovation. In a factory scale of more than 700,000 square meters, these employees and technicians carry out efficient production and research and development to ensure that our products can meet the diverse needs of the market.
The company's product line covers a full range of special vehicles from small sanitation vehicles to large engineering vehicles, including but not limited to LPG tankers, garbage trucks, aerial work trucks, tow trucks, fire trucks, mobile medical vehicles, semi-trailers, bus, etc. Each product embodies our unremitting pursuit of technology and craftsmanship, as well as a deep understanding of customer needs. Our Advantages Factory Picture
Office Pictures
Some Certificate Pictures
Professional Team
Exhibition pictures
Customers visit the factory
Hot Sale Product
Packaging & Shipping
Packing & Shipping
FAQ
Q1:Who we are?
Chusheng Vehicle is a renowned manufacturer in the field ofspecial-purpose vehicles in China for over 20 years. We have morethan 3,000 workers and 400 technical personnel, with a factory sizeexceeding 690,000 square meters.
Q2:What can you buy from us?
Customized dump truck, refrigerator truck, water tank truck, fueltank truck, LPG tank truck, wrecker truck, garbage truck, sewagesuction truck, concrete mixer truck, road sweeper truck, fire fightingtruck, cargo van truck etc.
Q3: What's the delivery time?
40-50 working days after receiving the deposit.
Q4 :What payment terms can we accept?
30% deposit by T/T before production, 70% balance by T/T beforesea shipping.We will show you the photos of the products andpackage before you pay the balance.
Q5: Can truck be customized?
A: Of course, tell us the model you needs, and we will customize more suitable trucks according to your requirements.

---
