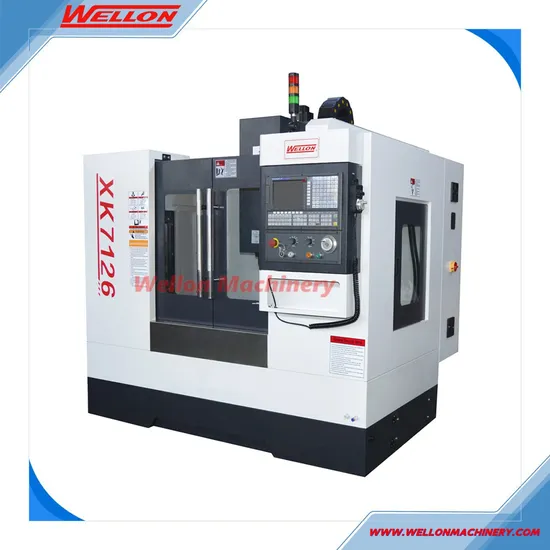

900X280mm Small CNC Machining Center Xk7126 Vertical Milling Machine Tool

Product Description

Product Description
Products Description:
Performence Features:
As one new product of independent design & development, XK7126 is a multi-purpose machine which could mill surface & drill holes. This machine adopts domestic/overseas branded numerical control system and realizes full-screen edition in Chinese. Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting functions; machining body adopts ultrasonic frequency hardening treatment; both X-axle & Z-axle adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws.
With high power, pleasant rigidity, high precision & storage, high price-quality ratio and long cycle life, the machine is widely applied to instruments, meters, light industries, electronics, home appliances, medical instruments, aeronautics & astronautics and etc. industries, it is one small-medium precision & complex machine for processing various materials (especially non-ferrous metals & stainless steel) as well as an ideal equipments for large automation production.
Technical parameter:

Model	XK7126
Main Motor Power KW	3.7KW
Spindle Max. Rotating Speed	6000 rpm
Z Motor Torque	12N.m
X Motor Torque	9N.m
Y Motor Torque	9N.m
Spindle Taper	BT40
Worktable Size	900x280mm
Travel(Longitudinal X/Horizontal Y/Vertical Z)	450x320x450mm
Distance of Spindle Axis to Guideway Plane	360mm
Distance of Spindle End to Worktable	90-510mm
X,Y axis feeding speed	8000mm
Z axis feeding speed	6000mm
Voltage	380V 50HZ 3Phase
Positioning Accuracy	0.02mm
Repeated Positioning Accuracy	0.01mm
Machine Overall Dimension (L*W*H) mm	2600*1950*2400
Machine Net Weight KG	2400
External Protection Level	Full closed- protection

Standard accessories:
Siemens 808D Control System
Spindle speed 6000rpm
Coolant pump
Working Lamp
Mobile pulse generator
Air gun
Full closed protection
Optional accessories:
12 tools umbrella type Magazine
Automatic chip conveyor& chip bucket(Chain type)
Automatic chip conveyor& chip bucket(Screw type)
Spindle center water spray
Spindle Oil cooler
Nitrogen balance system
Air conditioner for electricity cabinet
