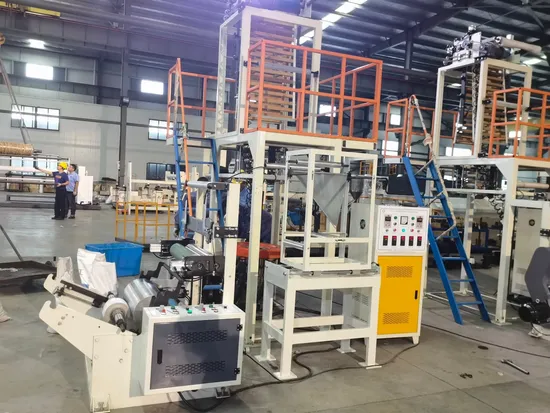

SL-45-600 film extrusion machine with triangle device
The machine is special to blow film, such as HDPE, LDPE, dissoluble plastic and reproducible plastic. And equipped with edge folding device to blowing and processing the plastic bags. The forming frame can rise and down at random, this feature makes the operation easy and ensures good quality. The machine is compact structure, easy operation, less occupation of space, it is the ideal equipment to produce plastic film.
MODEL: SL-45-600
HDPE Film blowing machine with triangle device for make garbage roller bag |
| |
| Feature | Specifications |
| Blowing material | HDPE/LDPE/LLDPE/ dissoluble plastic/ reproducible plastic |
| Film width | 100-550mm |
| Film thickness(single layer) | 0.001-0.05mm |
| Extrusion Output | 10-40Kg/h |
| Temperature controller | Intelligent temperature controller, CHINA brand |
| Contactor/ Short circuit overload protector | DELIXI |
| Inverter motor | INVT |
| W orkpiece | All w orkpiece surface with painting or chrome plated processing |
| Main motor | Use inverter control the speed |
| Guide roller | 55× 600mm, all with Oxidation treatment; SHANGHAI |
| Total Power | 380V, 26KW |
| Machine weight | 2000KG |
| Overall Dimensions | 4800× 2000× 3800mm |
| Extruder | |
| Screw diameter | 45mm |
| Screw ratio (L/D) | 30: 1 |
| Screw and Barrel Material | 38CrMoAl, hardening and tempering, deal with Nitride |
| Heater | by electricity (5 temp control zone 4 fan cooling) |
| die type | General die |
| Die material | Material of 45steel forgings. The cavity wall, punch hard chromium plating surface are polishing treatment and electronic polishing treatment |
| Reduction Gearbox | High speed hard tooth surface, KEWEI brand |
| Extrusion motor | 11KW, SIMENS Beide Motor |
| Take-up Tower | |
| Cylinder Of Roller Width | 600mm |
| Effective Roller Width | 550mm |
| Take-Up Control | Motor and Inverter control |
| Rewinding | |
| Rewind | Single rewind roller |
| Winder Controlling | By friction, inverter motor |
| Max rewind diameter | 600mm |
